  15. Mechanical Blade Micrometer, 0 to 1 in

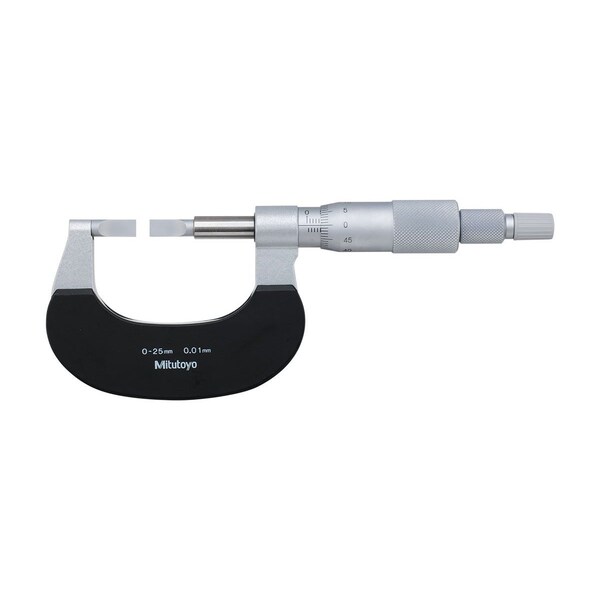

Mitutoyo Mechanical Blade Micrometer, 0 to 1 in 122-125-10 - main

Mechanical Blade Micrometer, 0 to 1 in

  • Mfr # 122-125-10

  • Zoro # G201113568

product price: $379.99
/ea
Free Shipping & Returns

Key Features

Resolution
0.0001 in
Includes
Case
Spindle
Blade
Lock Nut Type
Ratchet Stop
Functions
Measures Groove Diameters of Shafts, Keyways and Other Hard to Reach Areas
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
122-125-10
Zoro #
G201113568
UPC #
603908699569
Country of Origin
Japan

Dimensions

Anvil Size
0.75 mm
Spindle Size
0.75 mm
Dimension Type
Inch
Spindle Diameter
6.35 mm
Spindle Diameter1
6.35 mm

Details

Item
Mechanical Blade Micometer
Resolution
0.0001 in
Range
0 in to 1 in
Includes
Case
Spindle
Blade
Lock Nut Type
Ratchet Stop
Functions
Measures Groove Diameters of Shafts, Keyways and Other Hard to Reach Areas
Left-Handed Operation
No
Anvil Material
Carbide
Rotating Spindle (Yes/No)
Yes
Standards
ASME
Operation Type
Mechanical
Anvil Shape
Blade
Case Included
Yes
Maximum Measurement - Inch
1 in
Includes Battery
No
Minimum Measurement - Inch
0 in
SPC Output
No
Spindle Material
Carbide Tipped
Accuracy
+/-0.00015 in
Thimble Type
Ratchet
Frame Material
Baked Enamel
Long Form Calibration Certificate
No
Case Type
Case
Included Certification
Certificate of Inspection
Inches Measured - Maximum
1 in
Inches Measured - Minimum
0 in
Spindle Shape
Blade
Rotating Spindle
Yes

Description

Mechanical Blade Micometer, Range 0 in to 1 in, Resolution 0.0001 in, Accuracy +/-0.00015 in, SPC Output No, Long Form Calibration Certificate No, Anvil Shape Blade, Anvil Size 0.75 mm, Dimension Type Inch, Left-Handed Operation No, Operation Type Mechanical, Thimble Type Ratchet, Anvil Material Carbide, Case Included Yes, Case Type Case, Frame Material Baked Enamel, Functions Measures Groove Diameters of Shafts, Keyways and Other Hard to Reach Areas
