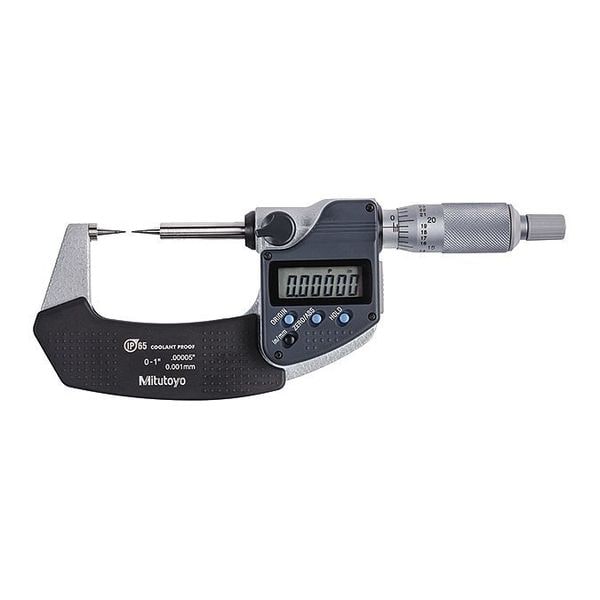

Mitutoyo Point Micrometer, Ratchet Thimble 342-351-32 - main

Point Micrometer, Ratchet Thimble

  • Mfr # 342-351-32

  • Zoro # G0581572

product price: $619.99
/ea
Free Shipping & Returns

Key Features

Resolution
0.00005"/0.001mm
Range
0 to 1"/0 to 25.4mm
Operation
Digital
Features
IP65 Water/Dust Protection, Non-Slip Grip Finish
Includes
(1) Battery (SR44), (1) Fitted Plastic Case, (1) Digit Counter, (1) SPC Output
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
342-351-32
Zoro #
G0581572
UPC #
603908596707
Country of Origin
Japan

Dimensions

Spindle Size
0.250 in
Anvil Size
0.250 in
Battery Size
SR44
Spindle Diameter
18 mm
Dimension Type
Inch/Metric
Spindle Diameter1
18 mm

Details

Item
Point Micrometer
Resolution
0.00005"/0.001mm
Range
0 to 1"/0 to 25.4mm
Operation
Digital
Features
IP65 Water/Dust Protection, Non-Slip Grip Finish
Includes
(1) Battery (SR44), (1) Fitted Plastic Case, (1) Digit Counter, (1) SPC Output
Spindle
Point
Anvil
Blade
Thimble
Ratchet
Lock Nut Type
Lever
Spindle Material
Carbide
Anvil Material
Carbide
Standards
ASME B89.1.13, JIS B 7502
IP Rating
IP65
SPC Output
Yes
Rotating Spindle (Yes/No)
Yes
Long Form Calibration Certificate
No
Compatible Data Output Cable
Mfr. No. 05CZA662, Mfr. No. 05CZA663
Includes Battery
Yes
Coolant Resistant
Yes
Minimum Measurement - Inch
0 in
Anvil Shape
Point
Data Output Type
Cabled
Maximum Measurement - mm
25.4 mm
Maximum Measurement - Inch
1 in
Operation Type
Digital
Case Type
Case
Case Included
Yes
Thimble Type
Ratchet
Minimum Measurement - mm
0 mm
Accuracy
+/-0.0001 in
Functions
Keyways and Other Hard to Reach, Measuring Web Thickness of Drills
Display Type
LCD
Millimeters Measured - Maximum
25.4 mm
Inches Measured - Minimum
0 in
Spindle Shape
Point
Rotating Spindle
Yes
Inches Measured - Maximum
1 in
Millimeters Measured - Minimum
0 mm

Description

If you need a micrometer that is accurate and precise, the Mitutoyo 342-351-30 Point Micrometer will meet your needs. It has a ratchet thimble for added convenience. The digital point offers a 0.00005"/0.001mm resolution and an accuracy of +/-0.0001 in./+/-0.25mm over the full range of measurement, which is from 0 to 1"/0 to 25.4mm respectively. This point micrometer has a non-slip grip finish and IP65 water/dust protection so it can be used in all types of conditions without being damaged or malfunctioning as a result of exposure to liquids or dirt particles. If you are looking for a high quality point micrometer, this one from Mitutoyo will not disappoint you.

Restrictions

Hazardous material
