  13. Radius Gage Set, 17/64 to 1/2, 32 Leaves

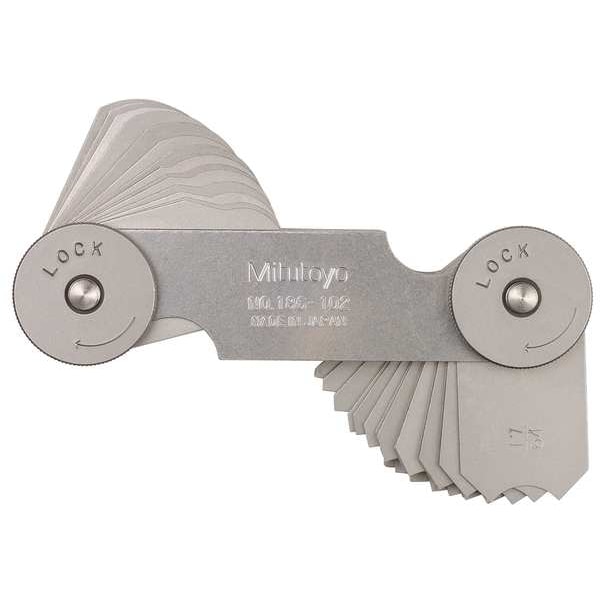

Mitutoyo Radius Gage Set, 17/64 to 1/2, 32 Leaves 186-102 - main

Radius Gage Set, 17/64 to 1/2, 32 Leaves

  • Mfr # 186-102

  • Zoro # G3551213

product price: $68.79
/ea

Key Features

Range (In.)
17/64 to 1/2 in by 64ths
Gauges per Set
16 Pair of Leaves
Finish
Uncoated
Configuration
Concave & Convex Radii
Includes
Locking Clamp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
186-102
Zoro #
G3551213
UPC #
603908057246
Country of Origin
Japan

Dimensions

Dimension Type
Angle
Included Sizes
17/64 in, 9/32 in, 19/64 in, 5/16 in, 21/64 in, 11/32 in, 23/64 in, 3/8 in, 25/64 in, 13/32 in, 27/64 in, 7/16 in, 29/64 in, 15/32 in, 1/2 in

Details

Item
Radius Gauge Set
Range (In.)
17/64 to 1/2 in by 64ths
Gauges per Set
16 Pair of Leaves
Finish
Uncoated
Configuration
Concave & Convex Radii
Includes
Locking Clamp
Case Included
Yes
Maximum Measurement - Inch
1/2 in
Case Type
Hard Case
Minimum Measurement - Inch
17/64 in
Accuracy
+/-0.002 in
Increments
1/64 in (9/32 in to 33/64 in)
Range
17/64 in to 1/2 in by 64ths
Number of Leaves
32
Set Style
Fixed Leaves With Handle
Inches Measured - Minimum
17/64 in
Inches Measured - Maximum
1/2 in

Description

The Mitutoyo 186-102 Radius Gage Set is the ideal choice for checking flatness and roundness of workpieces. This concave and convex radius gage set contains 16 pairs of leaves, giving you a total of 32 leaves in all. The concave and convex radius gage set comes with an uncoated finish that provides superior performance even in high-temperature conditions. It has a range from 17/64 to 1/2 in by 64ths, with increments between 9/32 in to 33/64 in. Each leaf measures 17/64 to 1/2 in, making it easy for you to find the right size leaf for your project. You can also find its case type - hard case - quite useful as it helps protect your tools when not in use. If you are looking for a complete tool kit for your workshop or garage, then consider the Mitutoyo 186-102 Radius Gage Set.
