  13. Screw Pitch Gage, V, Unified, 4 to 84
This item is Discontinued.

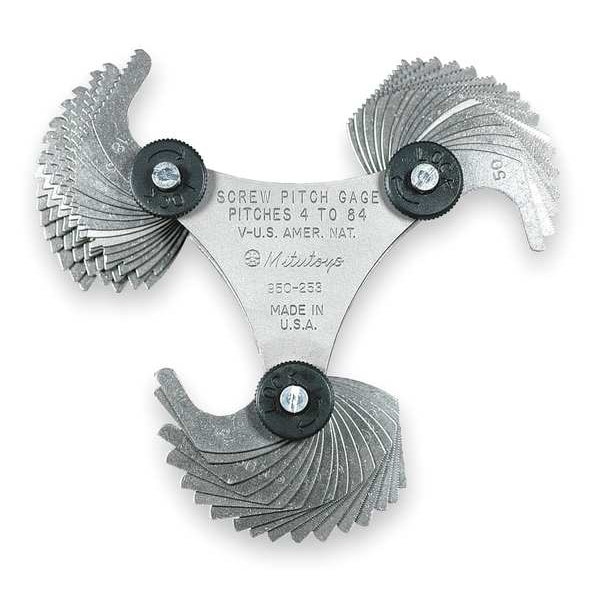

Mitutoyo Screw Pitch Gage, V, Unified, 4 to 84 950-253

Screw Pitch Gage, V, Unified, 4 to 84 (Discontinued)

  • Mfr # 950-253
  • Zoro # G1971033
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
950-253
Zoro #
G1971033
UPC #
603908192633
Country of Origin
United States

Details

Item
Thread Pitch Gauge Set
Construction
Steel Case With Folding Leaves
Thread Angle (Deg.)
60
Leaves
Narrow Design With Flattened Teeth
Locking Device
Yes
Type
V, Unified, American National
Number of Leaves
51
Range of Pitches per Inch
4 to 84 TPI
Thread Angle
60 Degrees
Gauge Material
Steel
Thread Type
Unified Inch
Minimum Thread Pitch - mm
4
Included Threads per Inch
4 TPI, 4 1/2 TPI, 5 TPI, 5 1/2 TPI, 6 TPI, 7 TPI, 8 TPI, 9 TPI, 10 TPI, 11 TPI, 11 1/2 TPI, 12 TPI, 13 TPI, 14 TPI, 15 TPI, 16 TPI, 18 TPI, 20 TPI, 22 TPI, 24 TPI, 26 TPI, 27 TPI, 28 TPI, 30 TPI, 32 TPI, 34 TPI, 36 TPI, 38 TPI, 40 TPI, 42 TPI, 44 TPI, 46 TPI, 48 TPI, 50 TPI, 52 TPI, 54 TPI, 56 TPI, 58 TPI, 60 TPI, 62 TPI, 64 TPI, 66 TPI, 68 TPI, 70 TPI, 72 TPI, 74 TPI, 76 TPI, 78 TPI, 80 TPI, 82 TPI, 84 TPI
Maximum Thread Pitch - mm
84
TPI Range
4 to 84 TPI

Description

Thread Pitch Gauge Set, Included Threads per Inch 4 TPI, 4 1/2 TPI, 5 TPI, 5 1/2 TPI, 6 TPI, 7 TPI, 8 TPI, 9 TPI, 10 TPI, 11 TPI, 11 1/2 TPI, 12 TPI, 13 TPI, 14 TPI, 15 TPI, 16 TPI, 18 TPI, 20 TPI, 22 TPI, 24 TPI, 26 TPI, 27 TPI, 28 TPI, 30 TPI, 32 TPI, 34 TPI, 36 TPI, 38 TPI, 40 TPI, 42 TPI, 44 TPI, 46 TPI, 48 TPI, 50 TPI, 52 TPI, 54 TPI, 56 TPI, 58 TPI, 60 TPI, 62 TPI, 64 TPI, 66 TPI, 68 TPI, 70 TPI, 72 TPI, 74 TPI, 76 TPI, 78 TPI, 80 TPI, 82 TPI, 84 TPI, Maximum Thread Pitch - mm 84
