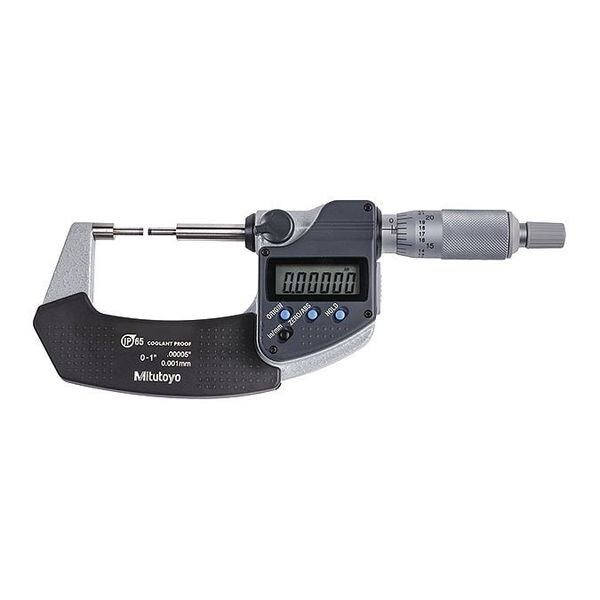

Mitutoyo Spline Micrometer, Ratchet Thimble 331-351-32 - main

Spline Micrometer, Ratchet Thimble

  • Mfr # 331-351-32

  • Zoro # G0581557

product price: $619.99
/ea
Free Shipping & Returns

Key Features

Resolution
0.00005"/0.001mm
Range
0 to 1"/0 to 25.4mm
Operation
Digital
Features
IP65 Water/Dust Protection, Carbide Tipped Measuring Faces, The Anvil and Spindle Have A Small Diameter for Measuring Splined Shafts, Slots, and Keyways, Non-slip Grip Finish, Ratchet Stop for Constant Force
Includes
(1) Battery (SR44), (1) SPC Output, (1) Fitted Plastic Case
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
331-351-32
Zoro #
G0581557
UPC #
603908597384
Country of Origin
Japan

Dimensions

Spindle Size
0.250 in
Anvil Size
0.250 in
Battery Size
SR44
Spindle Diameter
18 mm
Dimension Type
Inch/Metric
Spindle Diameter1
18 mm

Details

Item
Spline Micrometer
Resolution
0.00005"/0.001mm
Range
0 to 1"/0 to 25.4mm
Operation
Digital
Features
IP65 Water/Dust Protection, Carbide Tipped Measuring Faces, The Anvil and Spindle Have A Small Diameter for Measuring Splined Shafts, Slots, and Keyways, Non-slip Grip Finish, Ratchet Stop for Constant Force
Includes
(1) Battery (SR44), (1) SPC Output, (1) Fitted Plastic Case
Spindle
Spline
Anvil
Spline
Thimble
Ratchet
Lock Nut Type
Lever
Standards
ASME B89.1.13, JIS B 7502
SPC Output
Yes
Spindle Material
Carbide Tipped
Rotating Spindle (Yes/No)
No
IP Rating
IP65
Anvil Material
Carbide Tipped
Long Form Calibration Certificate
No
Case Type
Case
Display Type
LCD
Thimble Type
Ratchet
Coolant Resistant
Yes
Data Output Type
Cabled
Compatible Data Output Cable
Mfr. No. 05CZA662, Mfr. No. 05CZA663
Minimum Measurement - mm
0 mm
Minimum Measurement - Inch
0 in
Operation Type
Digital
Functions
Alarm: Low Voltage, Counting Value Composition Error, Data Hold, Data Output, inch/mm Conversion (inch/mm models), Origin-Set, Zero-Setting
Includes Battery
Yes
Case Included
Yes
Maximum Measurement - mm
25.4 mm
Anvil Shape
Spline
Accuracy
+/-0.0001 in
Maximum Measurement - Inch
1 in
Inches Measured - Maximum
1 in
Millimeters Measured - Maximum
25.4 mm
Millimeters Measured - Minimum
0 mm
Spindle Shape
Spline
Rotating Spindle
No
Inches Measured - Minimum
0 in

Description

When it comes to micrometers, the Mitutoyo 331-351-30 Spline Micrometer is a high-quality tool that will meet your demands. The digital micrometer has an IP65 water/dust protection rating, making it suitable for harsh environments. Measuring splined shafts, slots, and keyways are made easy with the small diameter of the anvil and spindle. The non-slip grip finish allows you to maintain a firm hold on the micrometer at all times. The ratchet stop ensures that you can take measurements without having to readjust the micrometer each time. If you work in tough conditions or have tight tolerances, this is the tool for you.
