  13. Test Indicator Set, Swl Hd, 0 to 0.100 In

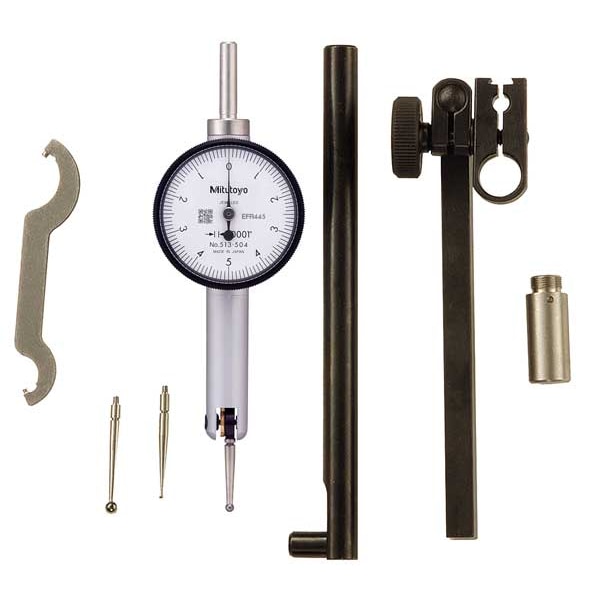

Mitutoyo Test Indicator Set, Swl Hd, 0 to 0.100 In 513-504-10T - main

Test Indicator Set, Swl Hd, 0 to 0.100 In

  • Mfr # 513-504-10T

  • Zoro # G1858902

product price: $239.99
/ea
Free Shipping & Returns

Key Features

Graduations
0.0001 in
Range
0 in to 0.01 in
Features
Jeweled Bearings Assure Higher Sensitivity and Accuracy; Reversible Measuring Direction; Fully Adjustable Bezel/Dial Face; Contact Point is Adjustable within 220 Degrees; Bezel is Sealed with on O-Ring to Keep Out Water/Oil
Finish
Satin Chrome
Accuracy
+/- 0.0002 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
513-504-10T
Zoro #
G1858902
UPC #
603908347132
Country of Origin
Japan

Dimensions

Contact Point Length
18.7mm
Contact Point Dia.
0.039 in, 0.118 in
Dial Size
1.25 in
Dimension Type
Inch
Stem Thread Size
M4 x 0.35 mm
Stylus Length
18.7 mm
Contact Point Diameter
0.039 in, 0.118 in

Details

Graduations
0.0001 in
Range
0 in to 0.01 in
Features
Jeweled Bearings Assure Higher Sensitivity and Accuracy; Reversible Measuring Direction; Fully Adjustable Bezel/Dial Face; Contact Point is Adjustable within 220 Degrees; Bezel is Sealed with on O-Ring to Keep Out Water/Oil
Finish
Satin Chrome
Accuracy
+/- 0.0002 in
Includes
Holding Rod, Inch Holding Bar, Stem, Swivel Clamp
Indicator Style
Swivel Head
Contact Point Style
Carbide
Reading
Balanced
Bearing Type
Jeweled
Series
513 Pocket Type
Dial Reading
0-5-0
Dial Color
White
Range per Revolution
0.01 in
Item
Horizontal Dial Test Indicator
Standards
ANSI
Long Form Calibration Certificate
No
Includes Dovetail Mount Attachments
Yes
Number of Indicators
1
Mounting Style
Holding Bars
Contact Point Material
Carbide
Included Certification
Short Form Certificate of Inspection with NIST Traceability
Contact Point Shape
Ball
Includes Case
Yes
Minimum Measurement - Inch
0 in
Maximum Measurement - Inch
0.01 in
Test Indicator Style
Horizontal
Non-Conductive Tip
No
Max. Measuring Force
0.03 N
Operation Type
Lever-Style
Non-Magnetic Tip
Yes
Product Type
Horizontal Dial Test Indicator
Inches Measured - Minimum
0 in
Maximum Measuring Force
0.03 N
Inches Measured - Maximum
0.01 in

Description

If you are looking for a test indicator that will give you the highest accuracy, this Mitutoyo 513-504T Dial Indicator Set is it. The dial indicator has a balanced reading of 0 to 5 with a range of 0 in to 0.01 in. It also has a satin chrome finish and is extremely accurate at +/-0.0002 in. This lever style dial indicator comes with white dials that have been graduated from 0 to 5 and allow for quick readings. This Mitutoyo Dial Indicator Set provides the most accurate results for your next project.
