  13. Thickness Gage, Range 0 -.47 In, NIST

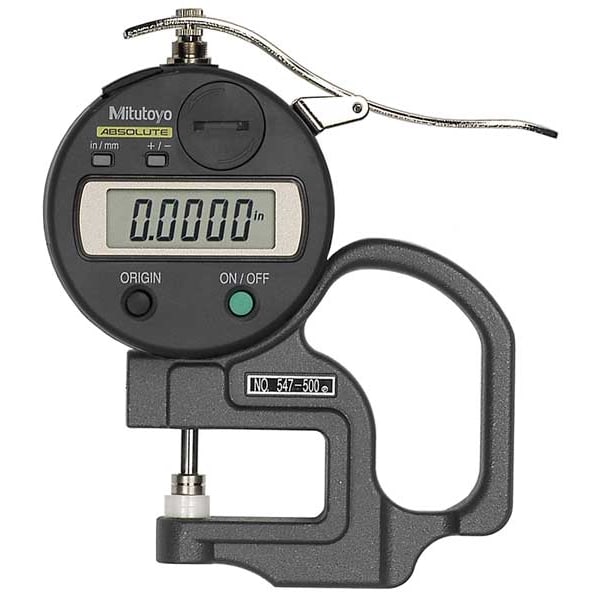

Mitutoyo Thickness Gage, Range 0 -.47 In, NIST 547-500SCAL - main

Thickness Gage, Range 0 -.47 In, NIST

  • Mfr # 547-500SCAL

  • Zoro # G8521283

product price: $393.13
/ea
Free Shipping & Returns

Key Features

Construction
Grip Handle, Thumb Trigger And Spring Loaded Spindle
Includes
SPC Cable
Long Form Calibration Certificate
Yes
Throat Depth
30 mm
Range (In.)
0 - .47
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
547-500SCAL
Zoro #
G8521283
UPC #
-
Country of Origin
Japan

Dimensions

Throat Depth
30 mm
Flat Contact Dia.
0.248 in
Battery Size
Silver Oxide Cell SR44
Dimension Type
Inch/Metric
Anvil Diameter
0.248 in

Details

Construction
Grip Handle, Thumb Trigger And Spring Loaded Spindle
Includes
SPC Cable
Long Form Calibration Certificate
Yes
Item
Digital Thickness Gauge
Range (In.)
0 - .47
Features
Incorporates ID-S Series Digimatic Indicator To Provide Error Free LCD Readings
Range (mm)
0 - 12
Contact Type
Flat Anvil
Resolution (mm)
.01
Accuracy
+/- 0.001 in
Resolution (In.)
0.00050
Range
0 in to 1/2 in, 0 mm to 12 mm
Included Certification
Certificate of Calibration
SPC Output
Yes
Operation Type
Digital
Minimum Measurement - Inch
0.0005 in
Maximum Measuring Force
1.5 N
Contact Material
Ceramic
Anvil Shape
Flat
Data Output Type
Cabled
Includes Battery
Yes
Resolution
0.0005 in, 0.01 mm
Grip Style
Convenient Grip
Maximum Measurement - mm
12 mm
Minimum Measurement - mm
0.01 mm
Actuation Type
Trigger
Maximum Measurement - Inch
0.4700 in
Compatible SPC Cable
Mfr. No. 905338
Display Type
LCD
Range - Inch
0 - .47
Millimeters Measured - Maximum
12 mm
Case Type
Box
Battery Type
Silver Oxide Cell SR44
Inches Measured - Minimum
0.0005 in
Actuation Style
Trigger
Millimeters Measured - Minimum
0.01 mm
Inches Measured - Maximum
0.47 in

Description

When it comes to taking measurements, the Mitutoyo 547-500SCERT Digital Thickness Gauge is a must-have. It features a built-in LCD screen and provides error free readings. The Mitutoyo 0 -.47 in Digital Thickness Gauge has an ID-S Series Digimatic Indicator that ensures accurate results every time. The 30 mm throat depth allows you to take measurements from deeper inside objects. With a flat anvil contact type, this digital thickness gauge gives you reliable readings on hard surfaces such as metal and stone. This inch/metric unit has a ceramic contact material for long lasting durability and accuracy. If you want reliable digital thickness gauge readings, the Mitutoyo 547 500SCERT will meet your needs.
