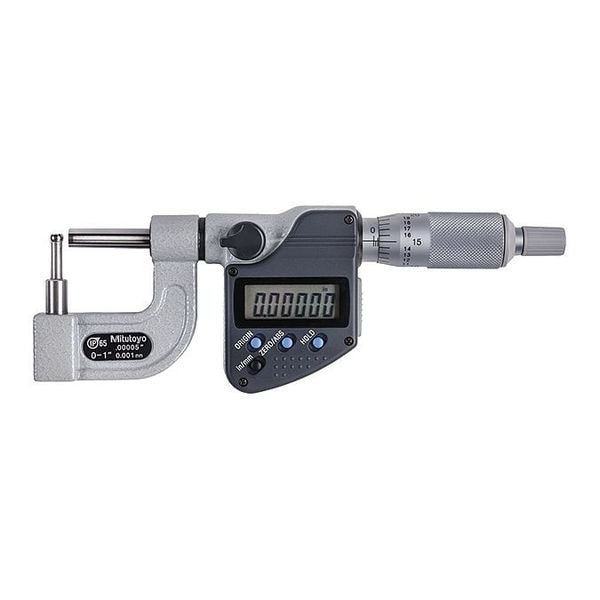

Mitutoyo Tube Micrometer, Ratchet Thimble 395-363-32 - main

Tube Micrometer, Ratchet Thimble

  • Mfr # 395-363-32

  • Zoro # G0581170

product price: $599.99
/ea
Free Shipping & Returns

Key Features

Resolution
0.00005"/0.001mm
Range
0 to 1"/0 to 25.4mm
Operation
Digital
Features
IP65 Water/Dust Protection, Designed to Measure The Wall Thickness of Various Tubing, Non-slip Grip Finish
Includes
(1) Battery (SR44), (1) Fitted Plastic Case, (1) SPC Output
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
395-363-32
Zoro #
G0581170
UPC #
603908599005
Country of Origin
Japan

Dimensions

Spindle Size
0.250 in
Anvil Size
0.272 in
Dimension Type
Inch/Metric
Battery Size
SR44
Spindle Diameter
18 mm
Spindle Diameter1
18 mm

Details

Item
Tube Micrometer
Resolution
0.00005"/0.001mm
Range
0 to 1"/0 to 25.4mm
Operation
Digital
Features
IP65 Water/Dust Protection, Designed to Measure The Wall Thickness of Various Tubing, Non-slip Grip Finish
Includes
(1) Battery (SR44), (1) Fitted Plastic Case, (1) SPC Output
Spindle
Flat
Anvil
Cylindrical
Thimble
Ratchet
Lock Nut Type
Locking Clamp
Spindle Material
Carbide Tipped
Standards
ASME B89.1.13, JIS B 7502
SPC Output
Yes
Rotating Spindle (Yes/No)
Yes
Anvil Material
Carbide Tipped
IP Rating
IP65
Long Form Calibration Certificate
No
Minimum Measurement - mm
0 mm
Minimum Measurement - Inch
0 in
Case Type
Case
Display Type
LCD
Accuracy
+/-0.00015 in
Maximum Measurement - mm
25.4 mm
Data Output Type
Cabled
Case Included
Yes
Compatible Data Output Cable
Mfr. No. 05CZA662, Mfr. No. 05CZA663
Anvil Shape
Cylindrical
Includes Battery
Yes
Maximum Measurement - Inch
1 in
Coolant Resistant
Yes
Thimble Type
Ratchet
Operation Type
Digital
Spindle Shape
Flat
Inches Measured - Minimum
0 in
Millimeters Measured - Minimum
0 mm
Inches Measured - Maximum
1 in
Rotating Spindle
Yes
Millimeters Measured - Maximum
25.4 mm

Description

When you need to measure the smallest of objects, the Mitutoyo 395-363-30 Tube Micrometer is the tool for you. Its ratchet thimble allows you to take measurements easily and quickly. The tube micrometer has a flat spindle with a digital readout. It has an accuracy of +/-0.00015 in., along with a resolution of 0.00005"/0.001mm respectively. You can also use this micrometer as a depth gauge by setting it up on its side. With its SPC output, it allows you to share your measurements via computer or printer wirelessly. The Mitutoyo Tube Micrometer is an accurate and reliable tool that will make your work easier than ever before.
