  13. Vernier Caliper, 0-8 In, 0.001 In Grad

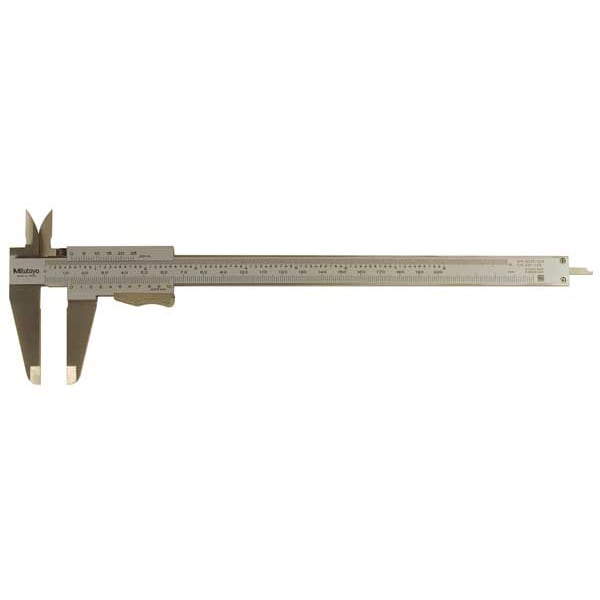

Mitutoyo Vernier Caliper, 0-8 In, 0.001 In Grad 531-129 - main

Vernier Caliper, 0-8 In, 0.001 In Grad

  • Mfr # 531-129

  • Zoro # G1427991

product price: $161.59
/ea
Free Shipping & Returns

Key Features

Range (In.)
0 to 8
Graduations (In.)
0.001
Jaw Depth (In.)
2
Material
Hardened Stainless Steel
Measures
Outside, Inside, Depth and Step
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
531-129
Zoro #
G1427991
UPC #
603908141662
Country of Origin
Japan

Dimensions

Jaw Depth (In.)
2
Jaw Depth
1 31/32 in
Measures Inside Dimension
Yes
Dimension Type
Inch/Metric
Measures Outside Dimension
Yes
Measures Depth
Yes

Details

Item
4-Way Vernier Caliper
Range (In.)
0 to 8
Graduations (In.)
0.001
Material
Hardened Stainless Steel
Measures
Outside, Inside, Depth and Step
Accuracy Rating
+/-0.03mm
Finish
Satin Chrome
Includes
Plastic Holster
Graduations (mm)
0.02
Range (mm)
0 to 200
Caliper Material
Stainless Steel
Jaw Shape
Standard Jaw
Range
0 in to 8 in, 0 mm to 203.2 mm
Graduations
0.02 mm
With Locking Nut
No
Jaw Actuation Type
Thumb Clamp
Operation Type
Mechanical
Graduations - Upper Scale
0.02 mm
Measurements
4-Way
Maximum Measurement - mm
200 mm
Minimum Measurement - Decimal Inch
0 in
Case Included
Yes
Maximum Measurement - Decimal Inch
8 in
Maximum Measurement - Fractional Inch
8 in
Accuracy
+/- 0.03 mm
Minimum Measurement - Fractional Inch
0 in
Minimum Measurement - mm
0 mm
Graduations - Lower Scale
0.001 in
Case Type
Vinyl Holster with Fitted Carton
Measures Step
Yes
Long Form Calibration Certificate
No
Millimeters Measured - Minimum
0 mm
Millimeters Measured - Maximum
200 mm
Inches Measured - Minimum
0 in
Inches Measured - Maximum
8 in
Inch Graduations
.001 in
Measurement Type
Depth, Inside, Outside, Step

Description

4-Way Vernier Caliper, Range 0 in to 8 in, 0 mm to 203.2 mm, Graduations 0.02 mm, Accuracy +/- 0.03 mm, Caliper Material Stainless Steel, Dimension Type Inch/Metric, Graduations - Lower Scale 0.001 in, Graduations - Upper Scale 0.02 mm, Jaw Actuation Type Thumb Clamp, Jaw Depth 1 31/32 in, Maximum Measurement - Decimal Inch 8 in, Maximum Measurement - Fractional Inch 8 in, Maximum Measurement - mm 200 mm, Measurements 4-Way, Measures Depth Yes, Measures Inside Dimension Yes
