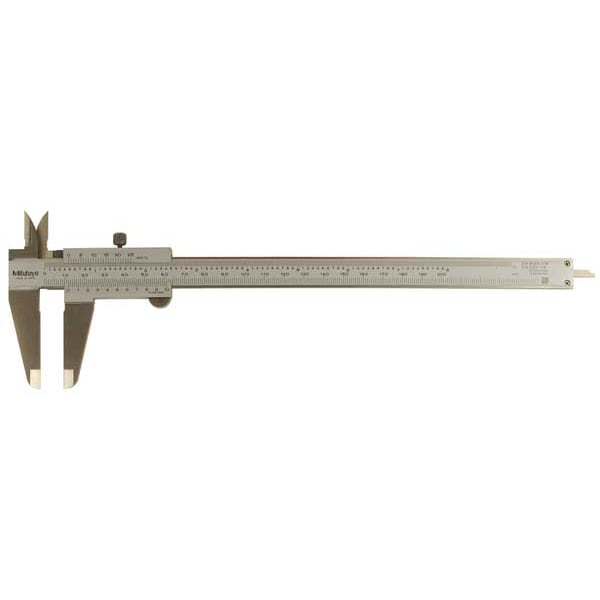

Mitutoyo Vernier Caliper, Lock Screw, 0-8 In 530-118 - main

Vernier Caliper, Lock Screw, 0-8 In

  • Mfr # 530-118

  • Zoro # G1833955

product price: $149.99
/ea
Free Shipping & Returns

Key Features

Range (In.)
0 to 8
Graduations (In.)
0.001
Jaw Depth (In.)
2
Material
Hardened Stainless Steel
Finish
Satin Chrome
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
530-118
Zoro #
G1833955
UPC #
603908141426
Country of Origin
Japan

Dimensions

Jaw Depth (In.)
2
Measures Depth
Yes
Measures Inside Dimension
Yes
Measures Outside Dimension
Yes
Dimension Type
Inch/Metric
Jaw Depth
1 31/32 in

Details

Item
4-Way Vernier Caliper
Range (In.)
0 to 8
Graduations (In.)
0.001
Material
Hardened Stainless Steel
Finish
Satin Chrome
Accuracy Rating
+/-0.03mm
Includes
Plastic Holster
Range (mm)
0 to 200
Graduations (mm)
0.02
Measures
Outside, Inside, Depth and Step
Minimum Measurement - Fractional Inch
0 in
Measurements
4-Way
Range
0 in to 8 in, 0 mm to 203.2 mm
Case Type
Vinyl Holster with Fitted Carton
Measures Step
Yes
Graduations - Upper Scale
0.05 mm
Jaw Shape
Standard Jaw
Minimum Measurement - Decimal Inch
0 in
With Locking Nut
Yes
Graduations
0.05 mm
Maximum Measurement - mm
203 mm
Caliper Material
Stainless Steel
Maximum Measurement - Fractional Inch
8 in
Operation Type
Mechanical
Jaw Actuation Type
Thumb Wheel
Minimum Measurement - mm
0 mm
Maximum Measurement - Decimal Inch
8 in
Accuracy
+/- 0.03 mm
Graduations - Lower Scale
0.05 mm
Case Included
Yes
Long Form Calibration Certificate
No
Millimeters Measured - Minimum
0 mm
Inches Measured - Maximum
8 in
Inch Graduations
.001 in
Millimeters Measured - Maximum
203 mm
Measurement Type
Depth, Inside, Outside, Step
Inches Measured - Minimum
0 in

Description

4-Way Vernier Caliper, Range 0 in to 8 in, 0 mm to 203.2 mm, Graduations 0.05 mm, Accuracy +/- 0.03 mm, Caliper Material Stainless Steel, Dimension Type Inch/Metric, Graduations - Lower Scale 0.05 mm, Graduations - Upper Scale 0.05 mm, Jaw Actuation Type Thumb Wheel, Jaw Depth 1 31/32 in, Maximum Measurement - Decimal Inch 8 in, Maximum Measurement - Fractional Inch 8 in, Maximum Measurement - mm 203 mm, Measurements 4-Way, Measures Depth Yes, Measures Inside Dimension Yes
