Shop MITUTOYO

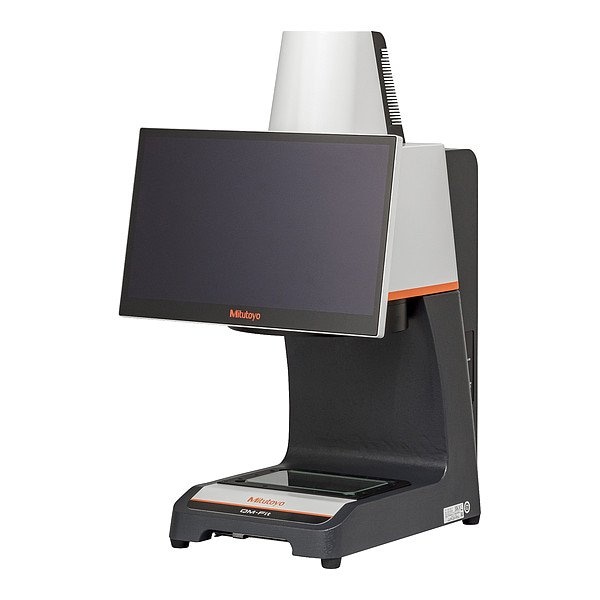

Vision Measuring System, LED

  • Mfr # 359-752-13PKFS

  • Zoro # G122440804

product price:
$
36,595.99
/ea
Additional $150.00 delivery surcharge applies per item.
See details

Key Features

Optical System Working Distance
36 mm
Optical System Magnification
100X
Image Type
Erect
Length Standard
CMOS Camera
Overall Dimensions
24.4 in x 16 in x 14.4 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
359-752-13PKFS
Zoro #
G122440804
UPC #
603908804420
Country of Origin
Multiple

Dimensions

Length Standard
CMOS Camera
Overall Dimensions
24.4 in x 16 in x 14.4 in
Stage Size
6.1 in x 3.8 in
Maximum Workpiece Height
36 mm
Stage Glass Size
6.1 in x 3.8 in

Details

Optical System Working Distance
36 mm
Optical System Magnification
100X
Image Type
Erect
Illumination
LED
Includes
15.6 in Touch Panel Monitor
Display Accuracy
3.5 in x 2.4 in
Repeatability
2¿ Less Than or Equal To 4 micronm
Resolution
0.0001/0.001/0.01/0.1/1 mm
X-Axis Measurement
4-1/2 in
Image Detecting Unit
20 Megapixel Color CMOS Camera
Measuring Accuracy
+/- 0.000394", +/-10 micronm *1
Magnification System
1-100X
Digital Zoom
1x to 100x
Data Output Type
Cable
Observation Unit Zoom
1-100X
Power Required
Yes
Item
Vision Measuring System
Projector Series
QM-Fit
Vision Measuring System Type
Manual

Description

Item Vision Measuring System, Digital Zoom 1x to 100x, Length Standard CMOS Camera, Measuring Accuracy +/- 0.000394 In., +/-10 micronm *1, Observation Unit Zoom 1-100X, Projector Series QM-Fit, Stage Glass Size 6.1 in x 3.8 in, Vision Measuring System Type Manual, Data Output Type Cable, Display Accuracy 3.5 in x 2.4 in, Focusing Travel Not Applicable, Illumination LED, Image Detecting Unit 20 Megapixel Color CMOS Camera, Image Type Erect, 15.6 in Touch Panel Monitor, Magnification System 1-100X
