  11. Sup-R-Drop Flanged Coil Thread Anchor, 1/2" Dia, 3/4" L, Steel Zinc Plated, 20 PK
Shop All Drop-In Anchors
Mkt Fastening

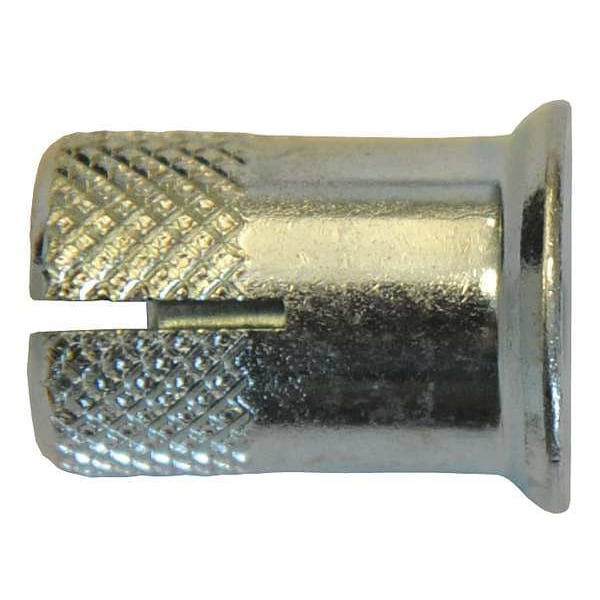

Sup-R-Drop Flanged Coil Thread Anchor, 1/2" Dia, 3/4" L, Steel Zinc Plated, 20 PK

product price: $10.15
/pk 20, $0.51/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • For Use In Concrete
  • Anchor Diameter 1/2"
  • Sub-Brand Sup-R-Drop
  • Material Steel
  • Finish Zinc Plated
See all product information

Product Information

Dimensions

Anchor Diameter 1/2"
Overall Length 3/4"
Drill Bit Size 1/2"
Thread Size 3/8"-16
Thread Depth 0.375 in
Min. Hole Depth 3/4 in
Bolt Dia. 3/8 in
Bolt or Rod Size 3/8 in
Minimum Hole Depth 3/4 in

Details

Item Flanged Coil Thread Anchor
For Use In Concrete
Sub-Brand Sup-R-Drop
Material Steel
Finish Zinc Plated
Meets/Exceeds U.S. GOV G.S.A. FF-S-325 GR VIII, Type 1
Ultimate Shear in 3000 PSI Concrete (Lb.) 3,714 lb
Ultimate Tension (Lbs.) 2,083 lb
Installation Turns Until Set Tool Shoulders On Anchor Lip
Drop-In Anchor Type Flange
Ultimate Tension @ 4000 psi 2,083 lb
Ultimate Shear @ 4000 psi 3,714 lb
Compatible Material Concrete
Maximum Ultimate Shear Strength 3,714 lb
Industry Standards FM Approved, GSA Spec FF-S-325, UL Listed
Installation Method Drop-In Anchor Setting Tool
Material Grade/Class grade 2
Ultimate Shear Strength (4,000 psi Concrete) 3,714 lb
Minimum Ultimate Tension Strength 2,083 lb
Ultimate Tension Strength (4,000 psi Concrete) 2,083 lb
Flange Style Flanged
Thread Type Coarse
Manufacturer Location Made in USA
Series Sup-R Drop
Maximum Ultimate Tension Strength 2,083 lb
System of Measurement Inch
Removable Permanent

Description

Drop-In Anchor, Anchor Diameter 1/2 in, Overall Length 3/4 in, Thread Size 3/8 In.-16, Thread Depth 0.375 in, Thread Type Coarse, Material Steel, Finish Zinc Plated, Flange Style Flanged, Drill Bit Size 1/2 in, Minimum Hole Depth 3/4 in, Ultimate Shear Strength (4,000 psi Concrete) 3,714 lb, Maximum Ultimate Shear Strength 3,714 lb, Ultimate Tension Strength (4,000 psi Concrete) 2,083 lb, Maximum Ultimate Tension Strength 2,083 lb, System of Measurement Inch, Bolt or Rod Size 3/8 in
