  11. SUP-R-STUD + Wedge Anchor, 1/2" Dia., 3-3/4" L, Steel Plain, 10 PK
Shop All Wedge Anchors
Mkt Fastening

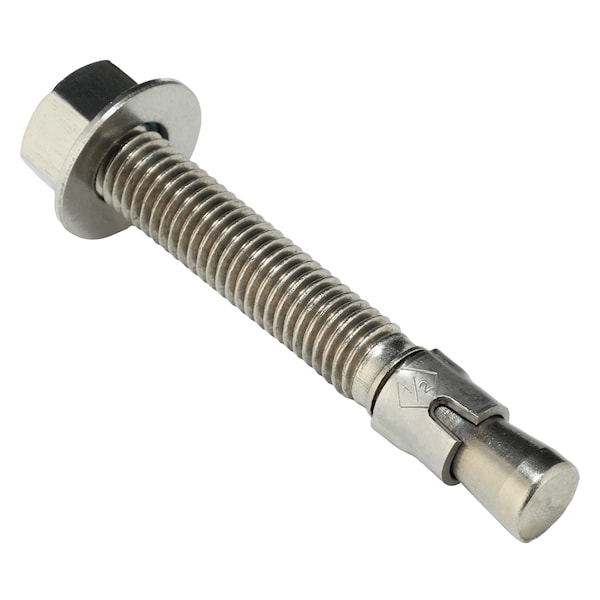

SUP-R-STUD + Wedge Anchor, 1/2" Dia., 3-3/4" L, Steel Plain, 10 PK

product price: $37.69
/pk 10, $3.77/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Compatible Material Concrete
  • Sub-Brand SUP-R-STUD +
  • Material Steel
  • Finish Plain
  • Seismic Approved No
See all product information

Product Information

Dimensions

Anchor Diameter 1/2"
Overall Length 3-3/4"
Drill Bit Size 1/2 in
Thread Size 1/2"-13
Minimum Installation Depth 2-1/4"
Thread Length 2 1/2 in
Washer Outside Diameter 1.062 in
Nut Width 0.75 in

Details

Item Wedge Anchor
Compatible Material Concrete
Sub-Brand SUP-R-STUD +
Material Steel
Finish Plain
Seismic Approved No
ICC Approved for Cracked Concrete No
Ultimate Pullout (Lb.) 5,068 lb
Maximum Material Thickness 1-1/2"
Ultimate Shear Strength (4,000 psi Concrete) 6,828 lb
Ultimate Tension Strength (4,000 psi Concrete) 5,068 lb
Ultimate Tension in 3000 PSI Concrete (Lb.) 4,120 lb
Embedment In Concrete 2 1/4 in
Ultimate Tension (Lbs.) 5,068 lb
Ultimate Shear in 3000 PSI Concrete (Lb.) 6,828 lb
Ultimate Shear (Lb.) 6,828 lb
Material Grade 304
Includes Nut, Washer
ICC Approved for Un-Cracked Concrete Yes
Industry Standards GSA SPEC FF-S-325C, GROUP II, TYPE 4, CLASS 1
Wedge Anchor Type Wedge Anchor
Maximum Ultimate Shear Strength 6,828 lb
Maximum Ultimate Tension Strength 5,068 lb
Manufacturer Location Made in USA
Series Stud+
Minimum Installation Torque 25 ft-lb
Material Grade/Class 18-8
Maximum Installation Torque 50 ft-lb
Minimum Material Thickness 4 in
System of Measurement Inch

Description

Wedge Anchor, System of Measurement Inch, Anchor Diameter 1/2 in, Thread Size 1/2 In.-13, Overall Length 3 3/4 in, Thread Length 2 1/2 in, Eyelet Hole Size Not Applicable, Material Stainless Steel, Material Grade/Class 18-8, Finish Plain, Compatible Material Concrete, Drill Bit Size 1/2 in, Minimum Installation Depth 2 1/4 in, Minimum Material Thickness 4 in, Ultimate Shear Strength (4,000 psi Concrete) 6,828 lb, Ultimate Tension Strength (4,000 psi Concrete) 5,068 lb, Nut Width 0.75 in
