  11. SUP-R-STUD + Wedge Anchor, 1/2" Dia., 5-1/2" L, Steel Zinc Plated, 10 PK
Shop All Wedge Anchors
Mkt Fastening

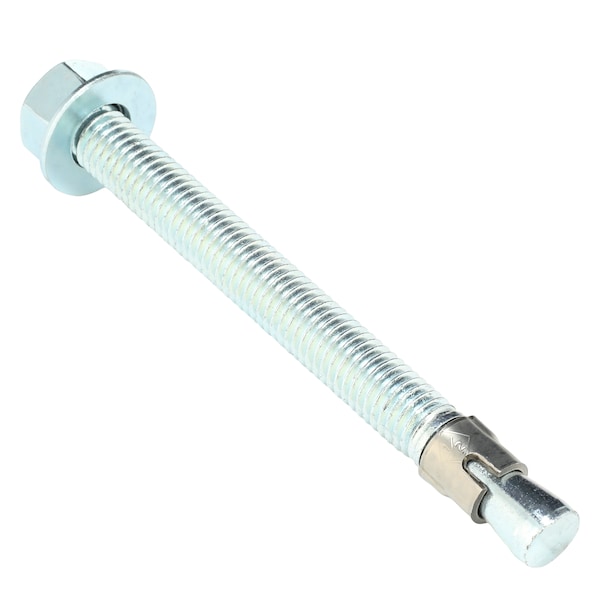

SUP-R-STUD + Wedge Anchor, 1/2" Dia., 5-1/2" L, Steel Zinc Plated, 10 PK

product price: $14.19
/pk 10, $1.42/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

Grade 2 Material Grade/Class
  • Compatible Material Concrete
  • Sub-Brand SUP-R-STUD +
  • Material Steel
  • Finish Zinc Plated
  • Seismic Approved No
See all product information

Product Information

Dimensions

Anchor Diameter 1/2"
Overall Length 5-1/2"
Drill Bit Size 1/2 in
Thread Size 1/2"-13
Minimum Installation Depth 2-1/4"
Thread Length 4 in
Nut Width 0.75 in
Washer Outside Diameter 1.062 in

Details

Item Wedge Anchor
Compatible Material Concrete
Sub-Brand SUP-R-STUD +
Material Steel
Finish Zinc Plated
Seismic Approved No
ICC Approved for Cracked Concrete No
Ultimate Pullout (Lb.) 5,772 lb
Maximum Material Thickness 1"
Ultimate Shear Strength (4,000 psi Concrete) 6,828 lb
Ultimate Tension Strength (4,000 psi Concrete) 5,772 lb
Ultimate Tension (Lbs.) 5,772 lb
Embedment In Concrete 4 1/2 in
Includes Nut, Washer
Ultimate Shear (Lb.) 6,828 lb
Material Grade Grade 2
Ultimate Tension in 3000 PSI Concrete (Lb.) 4,608 lb
Ultimate Shear in 3000 PSI Concrete (Lb.) 6,828 lb
ICC Approved for Un-Cracked Concrete Yes
Industry Standards GSA SPEC FF-S-325C, GROUP II, TYPE 4, CLASS 1
Wedge Anchor Type Wedge Anchor
Material Grade/Class Grade 2
Manufacturer Location Made in USA
Series Stud+
System of Measurement Inch
Maximum Ultimate Shear Strength 6,828 lb
Maximum Installation Torque 50 ft-lb
Minimum Material Thickness 4 in
Minimum Installation Torque 25 ft-lb
Maximum Ultimate Tension Strength 5,772 lb

Description

Wedge Anchor, System of Measurement Inch, Anchor Diameter 1/2 in, Thread Size 1/2 In.-13, Overall Length 5 1/2 in, Thread Length 4 in, Eyelet Hole Size Not Applicable, Material Steel, Material Grade/Class Grade 2, Finish Zinc Plated, Compatible Material Concrete, Drill Bit Size 1/2 in, Minimum Installation Depth 2 1/4 in, Minimum Material Thickness 4 in, Ultimate Shear Strength (4,000 psi Concrete) 6,828 lb, Ultimate Tension Strength (4,000 psi Concrete) 5,772 lb, Nut Width 0.75 in
