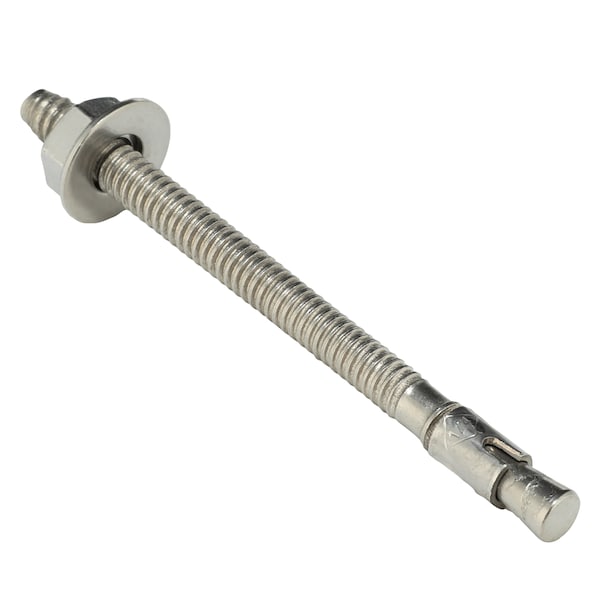

SUP-R-STUD + Wedge Anchor, 1/4" Dia., 3-1/4" L, Steel Plain, 20 PK
Mfr # 2714314
Zoro # G4454992
product price:Â
$
32.29
/pk 20, $1.61/ea
Key Features
Compatible Material
Concrete
Sub-Brand
SUP-R-STUD +
Material
Steel
Finish
Plain
Seismic Approved
No
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 2714314
- Zoro #
- G4454992
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Anchor Diameter
- 1/4"
- Overall Length
- 3-1/4"
- Drill Bit Size
- 1/4 in
- Thread Size
- 1/4"-20
- Minimum Installation Depth
- 1-1/8"
- Maximum Material Thickness
- 1"
- Thread Length
- 2 1/4 in
- Minimum Material Thickness
- 4 in
- Nut Width
- 0.4375 in
- Washer Outside Diameter
- 0.625 in
- Wire Rope Length
- 3 1/4 in
- Length
- 3 1/4 in
Description
Wedge Anchor, System of Measurement Inch, Anchor Diameter 1/4 in, Thread Size 1/4 In.-20, Overall Length 3 1/4 in, Thread Length 2 1/4 in, Eyelet Hole Size Not Applicable, Material Stainless Steel, Material Grade/Class 18-8, Finish Plain, Compatible Material Concrete, Drill Bit Size 1/4 in, Minimum Installation Depth 1 1/8 in, Minimum Material Thickness 4 in, Ultimate Shear Strength (4,000 psi Concrete) 1,472 lb, Ultimate Tension Strength (4,000 psi Concrete) 2,711 lb, Nut Width 0.4375 in
