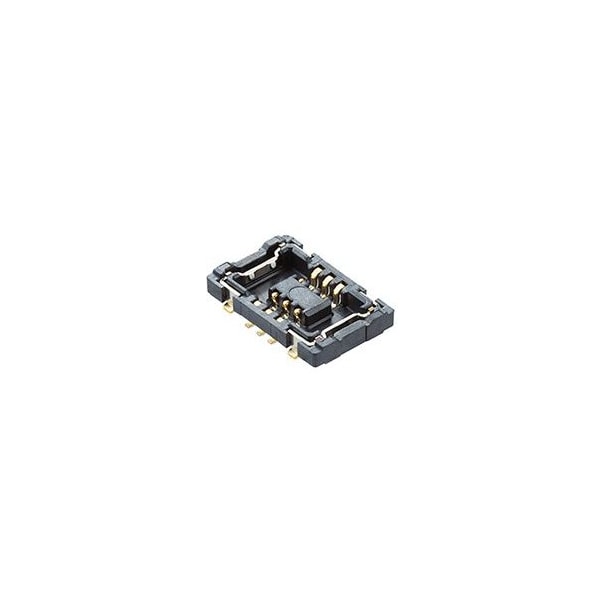

0.4 B/B HRF REC PKG 6CKT
Mfr # 503548-0622
Zoro # G500442642
product price: $0.33
/eaSold in multiples of 7000 for $2,310.00
Key Features
Application
Board-to-Board
Series
503548
Polarized to Mating Part
No
PCB Retention
Yes
Voltage - Maximum
50V AC/DC
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
503548-0622
Zoro #
G500442642
UPC #
191128129619
Country of Origin
Japan
Dimensions
Mated Height
0.70mm
Mated Width
2.60mm
Details
Application
Board-to-Board
Series
503548
Polarized to Mating Part
No
PCB Retention
Yes
Voltage - Maximum
50V AC/DC
Lock to Mating Part
Yes
Termination Interface: Style
Surface Mount
Circuits (maximum)
6
Series Name
HRF
Product Name
SlimStack
Material - Metal
Copper Alloy
Material - Plating Termination
Gold
PCB Locator
No
Current - Maximum per Contact
0.3A
Color - Resin
Black
Orientation
Vertical
Number of Rows
2
Durability (mating cycles max)
30
Temperature Range - Operating
-40° to +85°C
Polarized to PCB
No
Material - Plating Mating
Gold
Pitch - Mating Interface
0.40mm
