  11. 0.5 Fpc Zif Btm Cont Embt Pkg 46Ckt

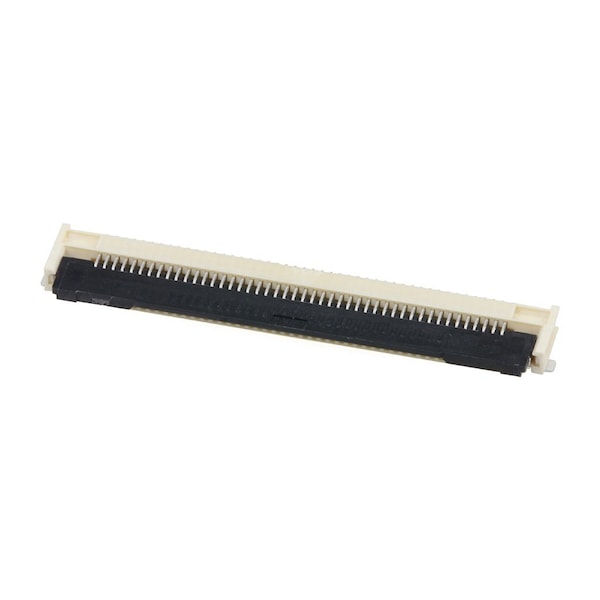

Molex 0.5 Fpc Zif Btm Cont Embt Pkg 46Ckt 5051104696 - main

0.5 Fpc Zif Btm Cont Embt Pkg 46Ckt

  • Mfr # 5051104696

  • Zoro # G105914834

product price: $1.85
/ea
Sold in multiples of 3000 for $5,550.00

Key Features

Max. Temp.
125°C
Max. Voltage
50V AC/DC
Series
505110
Hole Center to Center
0.5 mm
Material
Liquid Crystal Polymer
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5051104696
Zoro #
G105914834
UPC #
191128824361
Country of Origin
Japan

Dimensions

Contact Plating Thickness
0.051 µm
Mated Height
1.90mm

Details

Item
FFC FPC Connector
Max. Temp.
125°C
Max. Voltage
50V AC/DC
Series
505110
Hole Center to Center
0.5 mm
Material
Liquid Crystal Polymer
Color
Beige
Sub-Category
FFC/FPC Connectors
Current Rating
0.5 A
Contact Finish
Gold over Nickel
Number of Rows
1
Terminal Finish
Gold over Nickel
Number of Contacts
46
Wire/Cable Type
FFC/FPC
Stackable
No
Product Name
Easy-On
Durability (mating cycles max)
20
Plating min - Mating
0.051µm
Temperature Range - Operating
-40° to +150°C
Material - Plating Mating
Gold
Circuits (Loaded)
46
Pitch - Mating Interface
0.50mm
PCB Locator
No
Contact Position
Bottom
Material - Metal
Copper Alloy
Current - Maximum per Contact
0.5A
Material - Resin
Liquid Crystal Polymer
Polarized to PCB
Yes
PCB Mounting
Surface Mount
Voltage - Maximum
50V
Actuator Type
Front Flip
PCB Retention
Yes
Material - Plating Termination
Gold
Orientation
Right Angle
