  11. .110 X .032 Female Fiqd (Aa-2205)
This item is Discontinued.

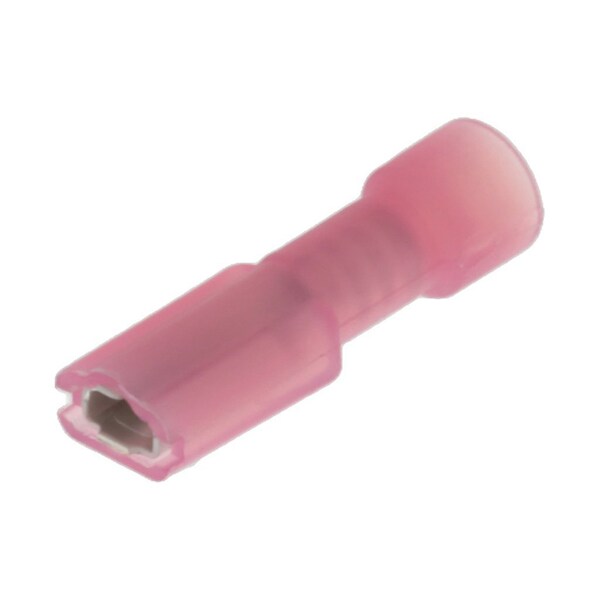

Molex .110 X .032 Female Fiqd (Aa-2205) 190030030

.110 X .032 Female Fiqd (Aa-2205) (Discontinued)

  • Mfr # 190030030
  • Zoro # G405900414
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
190030030
Zoro #
G405900414
UPC #
-
Country of Origin
United States

Dimensions

Wire Size (AWG)
18, 20, 22
Tab Width
2.79mm
Tab Thickness
0.81mm

Details

Insulation Color
Pink
Insulation Type
Nylon (PA)
Connection Type
Female, Crimp or Compression
Wire Range
22 to 18 AWG
Seam
Closed
Max. Temp.
105 Degrees C
Max. Voltage
600V
Standards
CSA Listed; UL E79133
Connection Material
Brass
Insulation Dia
3.43mm max.
Series
19003
UL
E79133
Material - Plating Mating
Tin
Gender
Female
Type
Quick Disconnect
Glow-Wire Capable
No
Lock to Mating Part
None
Material - Plating Termination
Tin
Flammability
94V-0
CSA
LR18689
Temperature Range - Operating
-65° to +105°C
Material - Resin
Nylon
Insulated
Fully
Termination Interface Style
Crimp or Compression
Orientation
Straight
Product Name
InsulKrimp
Plating min - Mating
4.064µm
Polarized to Mating Part
No
