  9. 1.25Wb Mlp Ptg Sr St Assy 5Ckt Etp Blk
This item is Discontinued.

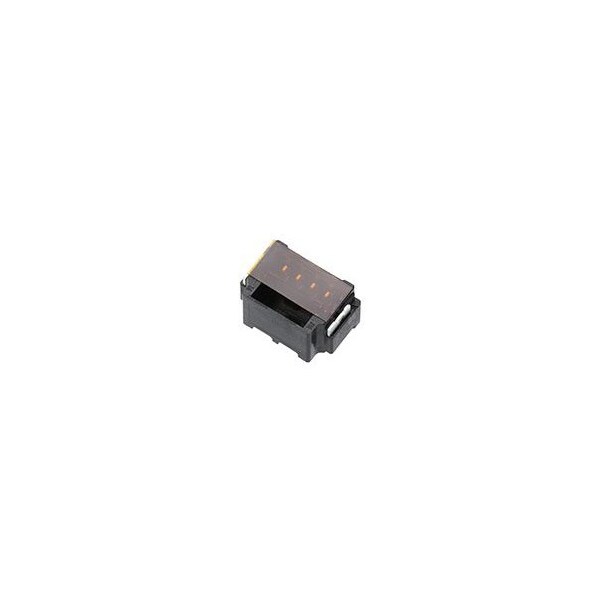

Molex 1.25Wb Mlp Ptg Sr St Assy 5Ckt Etp Blk 2059570571

1.25Wb Mlp Ptg Sr St Assy 5Ckt Etp Blk (Discontinued)

  • Mfr # 2059570571
  • Zoro # G705909858
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2059570571
Zoro #
G705909858
UPC #
-
Country of Origin
Malaysia

Dimensions

Contact Plating Thickness
1 µm

Details

Number of Rows
1
Standards
CSA Certified; UL E29179
Material
Polyamide
Application
Signal, Wire-to-Board
Features
Surface Mount Compatible
Color
Black
Max. Voltage
50V AC/DC
Hole Center to Center
1.25 mm
Terminal Finish
Tin-Bismuth Plated
Max. Temp.
105°C
Number of Contacts
5
Terminal Type
Surface Mount
Contact Finish
Tin-Bismuth Plated
Current Rating
3.6 A
Lock to Mating Part
Yes
PCB Retention
Yes
Component Type
PCB Header
Robotic Placement
Vacuum Pick-Up Tape
Polarized to Mating Part
Yes
Material - Plating Termination
Tin-Bismuth
Keying to Mating Part
Yes
First Mate / Last Break
No
Orientation
Vertical
Product Name
Micro-Lock Plus
Temperature Range - Operating
-40° to +105°C
Circuits (Loaded)
5
Shrouded
Fully
Plating min - Mating
1.000µm
CSA
LR19980
Current - Maximum per Contact
3.6A
Pitch - Mating Interface
1.25mm
Polarized to PCB
Yes
Voltage - Maximum
50V AC (RMS)/DC
UL
E29179
Guide to Mating Part
No
Material - Plating Mating
Tin-Bismuth
Material - Resin
Polyamide
Breakaway
No
Material - Metal
Brass
Glow-Wire Capable
No
Stackable
No
PCB Locator
No
Durability (mating cycles max)
30
Series
205957
