  9. 1.25Wb Mlp Ptg Sr St Assy 7Ckt Etp Blk

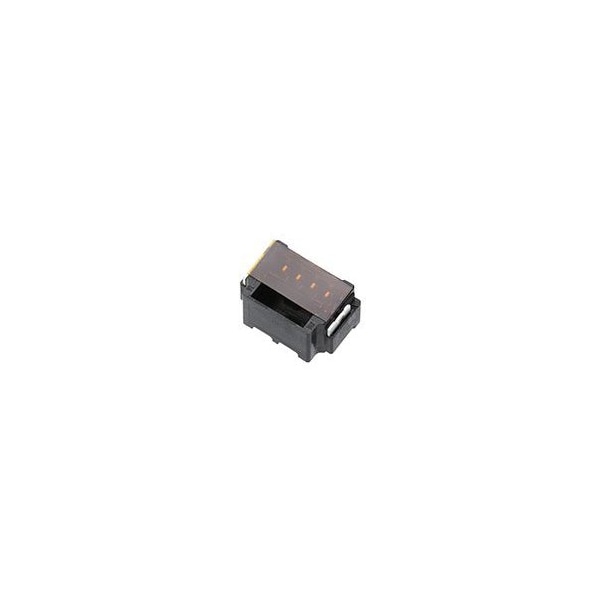

Molex 1.25Wb Mlp Ptg Sr St Assy 7Ckt Etp Blk 2059570771 - main

1.25Wb Mlp Ptg Sr St Assy 7Ckt Etp Blk

  • Mfr # 2059570771

  • Zoro # G105909809

product price: $0.83
/ea
Sold in multiples of 1000 for $830.00

Key Features

Number of Rows
1
Standards
CSA Certified; UL E29179
Material
Polyamide
Application
Signal, Wire-to-Board
Color
Black
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2059570771
Zoro #
G105909809
UPC #
-
Country of Origin
Malaysia

Dimensions

Contact Plating Thickness
1 µm

Details

Number of Rows
1
Standards
CSA Certified; UL E29179
Material
Polyamide
Application
Signal, Wire-to-Board
Color
Black
Features
Surface Mount Compatible
Max. Voltage
50V AC/DC
Terminal Finish
Tin-Bismuth Plated
Terminal Type
Surface Mount
Hole Center to Center
1.25 mm
Current Rating
3.6 A
Contact Finish
Tin-Bismuth Plated
Number of Contacts
7
Max. Temp.
105°C
CSA
LR19980
Lock to Mating Part
Yes
Robotic Placement
Vacuum Pick-Up Tape
Polarized to PCB
Yes
Product Name
Micro-Lock Plus
Material - Plating Mating
Tin-Bismuth
Material - Metal
Brass
Polarized to Mating Part
Yes
Temperature Range - Operating
-40° to +105°C
Guide to Mating Part
No
UL
E29179
Keying to Mating Part
Yes
Glow-Wire Capable
No
Plating min - Mating
1.000µm
PCB Locator
No
Shrouded
Fully
Pitch - Mating Interface
1.25mm
Material - Resin
Polyamide
Material - Plating Termination
Tin-Bismuth
PCB Retention
Yes
Durability (mating cycles max)
30
First Mate / Last Break
No
Breakaway
No
Orientation
Vertical
Voltage - Maximum
50V AC (RMS)/DC
Component Type
PCB Header
Series
205957
Circuits (Loaded)
7
Current - Maximum per Contact
3.6A
Stackable
No
