  9. 1.25Wb Mlp Ptg Sr St Assy 9Ckt Etp Blk

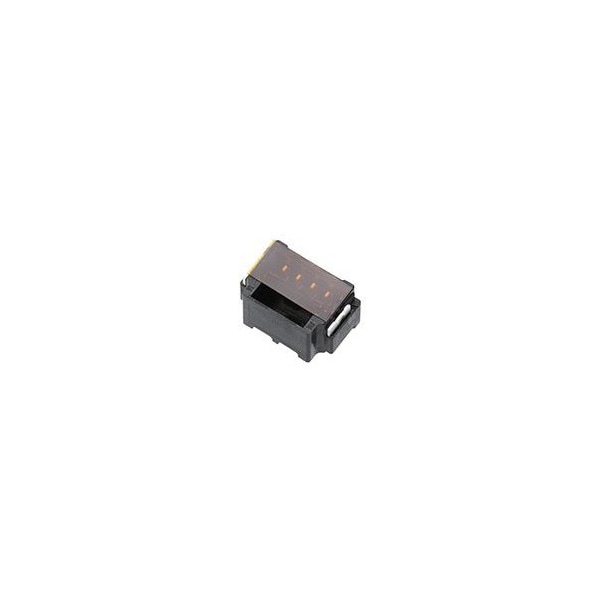

Molex 1.25Wb Mlp Ptg Sr St Assy 9Ckt Etp Blk 2059570971 - main

1.25Wb Mlp Ptg Sr St Assy 9Ckt Etp Blk

  • Mfr # 2059570971

  • Zoro # G005910073

product price: $0.89
/ea
Sold in multiples of 1000 for $890.00

Key Features

Number of Rows
1
Standards
CSA Certified; UL E29179
Material
Polyamide
Features
Surface Mount Compatible
Application
Signal, Wire-to-Board
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2059570971
Zoro #
G005910073
UPC #
-
Country of Origin
Malaysia

Dimensions

Contact Plating Thickness
1 µm

Details

Number of Rows
1
Standards
CSA Certified; UL E29179
Material
Polyamide
Features
Surface Mount Compatible
Application
Signal, Wire-to-Board
Color
Black
Contact Finish
Tin-Bismuth Plated
Current Rating
3.6 A
Max. Temp.
105°C
Hole Center to Center
1.25 mm
Number of Contacts
9
Max. Voltage
50V AC/DC
Terminal Finish
Tin-Bismuth Plated
Terminal Type
Surface Mount
Guide to Mating Part
No
Voltage - Maximum
50V AC (RMS)/DC
Polarized to Mating Part
Yes
Keying to Mating Part
Yes
Material - Resin
Polyamide
Orientation
Vertical
Product Name
Micro-Lock Plus
Temperature Range - Operating
-40° to +105°C
Material - Plating Mating
Tin-Bismuth
Material - Plating Termination
Tin-Bismuth
Circuits (Loaded)
9
Robotic Placement
Vacuum Pick-Up Tape
Durability (mating cycles max)
30
UL
E29179
First Mate / Last Break
No
Series
205957
Lock to Mating Part
Yes
Pitch - Mating Interface
1.25mm
PCB Retention
Yes
Shrouded
Fully
Breakaway
No
Glow-Wire Capable
No
Material - Metal
Brass
Current - Maximum per Contact
3.6A
PCB Locator
No
Stackable
No
Plating min - Mating
1.000µm
Polarized to PCB
Yes
Component Type
PCB Header
CSA
LR19980
