  11. 1.27mm PF Hdr LoPro Polz Blk 5Sn 6Ckt
This item is Discontinued.

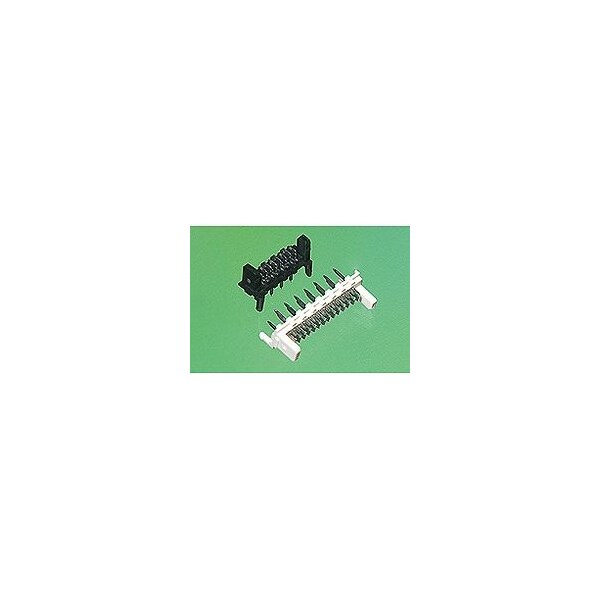

Molex 1.27mm PF Hdr LoPro Polz Blk 5Sn 6Ckt 90325-0006

1.27mm PF Hdr LoPro Polz Blk 5Sn 6Ckt (Discontinued)

  • Mfr # 90325-0006
  • Zoro # G4028680
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
90325-0006
Zoro #
G4028680
UPC #
-
Country of Origin
Malaysia

Dimensions

PCB Thickness - Recommended
1.60mm

Details

Color - Resin
Black
Polarized to PCB
Yes
Current - Maximum per Contact
1.2A
Max. Cycles at Max. Process Temperature
1
Circuits (maximum)
6
Material - Resin
Polyester
Material - Metal
Brass
UL
E29179
Durability (mating cycles max)
30
PCB Retention
Yes
Pitch - Mating Interface
1.27mm
Pitch - Termination Interface
1.27mm
Duration at Max. Process Temperature (seconds)
5
Process Temperature max. C
230
Polarized to Mating Part
Yes
Voltage - Maximum
250V
Lock to Mating Part
Yes
Temperature Range - Operating
-40° to +105°C
Circuits (Loaded)
6
Material - Plating Mating
Tin
Termination Interface: Style
Through Hole
CSA
LR19980
Orientation
Vertical
Number of Rows
1
Flammability
94V-0
