  9. 1.27Mm Pf Lopro Idt Rl-A Wht 2Sn 6Ckt

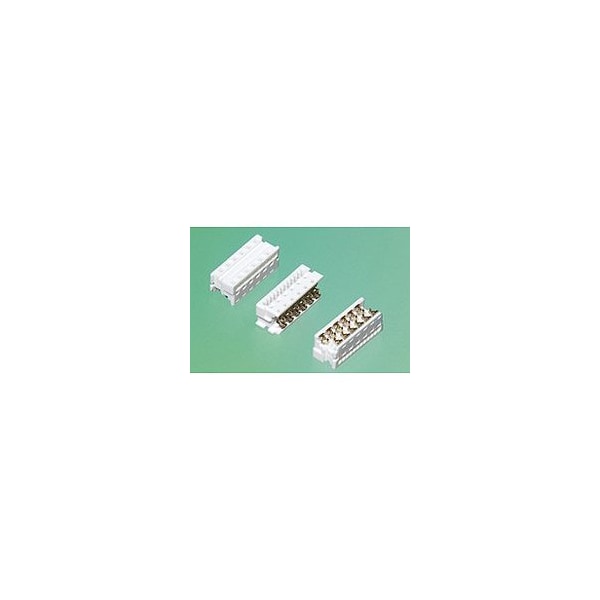

Molex 1.27Mm Pf Lopro Idt Rl-A Wht 2Sn 6Ckt 903270355 - main

1.27Mm Pf Lopro Idt Rl-A Wht 2Sn 6Ckt

  • Mfr # 903270355

  • Zoro # G205982412

product price: $0.26
/ea
Sold in multiples of 4000 for $1,040.00

Key Features

Number of Rows
2
Wire Insulation Diameter
1.00mm max.
Circuits (Loaded)
6
PCB Locator
No
Polarized to PCB
No
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
903270355
Zoro #
G205982412
UPC #
-
Country of Origin
Ireland

Dimensions

Wire Insulation Diameter
1.00mm max.
Wire Size (AWG)
26, 28

Details

Number of Rows
2
Circuits (Loaded)
6
PCB Locator
No
Polarized to PCB
No
Gender
Receptacle
Current - Maximum per Contact
1.2A
Glow-Wire Capable
No
Flammability
94V-0
Stackable
No
Pitch - Mating Interface
1.27mm
Component Type
Housing
Color - Resin
White
Material - Metal
Phosphor Bronze
Termination Interface Style
IDT or Pierce
Material - Plating Mating
Tin
Lock to Mating Part
Yes
UL
E29179
Polarized to Mating Part
Yes
CSA
LR19980
Entry Angle
Vertical
PCB Retention
None
Material - Resin
Polyester
Wire/Cable Type
Ribbon Cable
Series
90327
Material - Plating Termination
Tin
Shrouded
Fully
Product Name
Picoflex
Temperature Range - Operating
-40° to +105°C
Voltage - Maximum
250V
Durability (mating cycles max)
30
