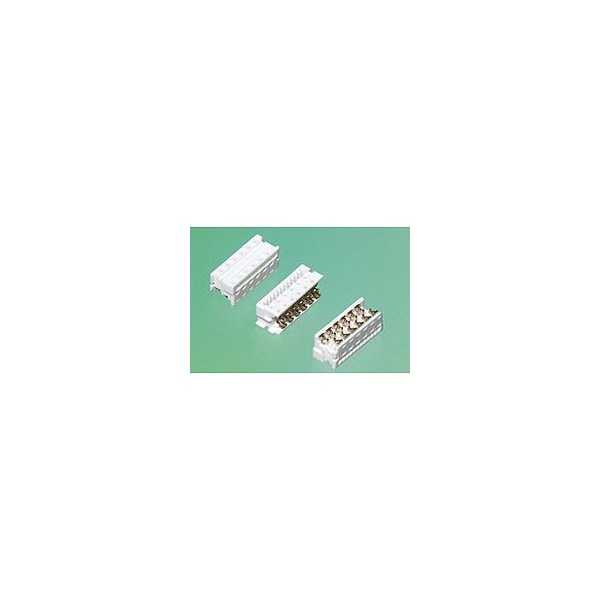

Molex 1.27Mm Pf Lopro Idt Rl-C Wht 2Sn 10Ckt 903270365 - main

1.27Mm Pf Lopro Idt Rl-C Wht 2Sn 10Ckt

  • Mfr # 903270365

  • Zoro # G005982520

product price:  $0.39
/ea
Sold in multiples of 4000 for $1,560.00

Key Features

Number of Rows
2
Series
90327
Pitch - Mating Interface
1.27mm
Material - Metal
Phosphor Bronze
UL
E29179
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
903270365
Zoro #
G005982520
UPC #
-
Country of Origin
Malaysia

Dimensions

Wire Insulation Diameter
1.00mm max.
Wire Size (AWG)
26, 28

Details

Number of Rows
2
Series
90327
Pitch - Mating Interface
1.27mm
Material - Metal
Phosphor Bronze
UL
E29179
CSA
LR19980
Stackable
No
Gender
Receptacle
Material - Plating Termination
Tin
Polarized to Mating Part
Yes
Polarized to PCB
No
Circuits (Loaded)
10
Material - Plating Mating
Tin
Temperature Range - Operating
-40° to +105°C
Product Name
Picoflex
Voltage - Maximum
250V
Color - Resin
White
Shrouded
Fully
Glow-Wire Capable
No
Current - Maximum per Contact
1.2A
Material - Resin
Polyester
Entry Angle
Vertical
Termination Interface Style
IDT or Pierce
Wire/Cable Type
Ribbon Cable
Durability (mating cycles max)
30
Component Type
Housing
PCB Retention
None
PCB Locator
No
Lock to Mating Part
Yes
Flammability
94V-0
