This item is Discontinued.

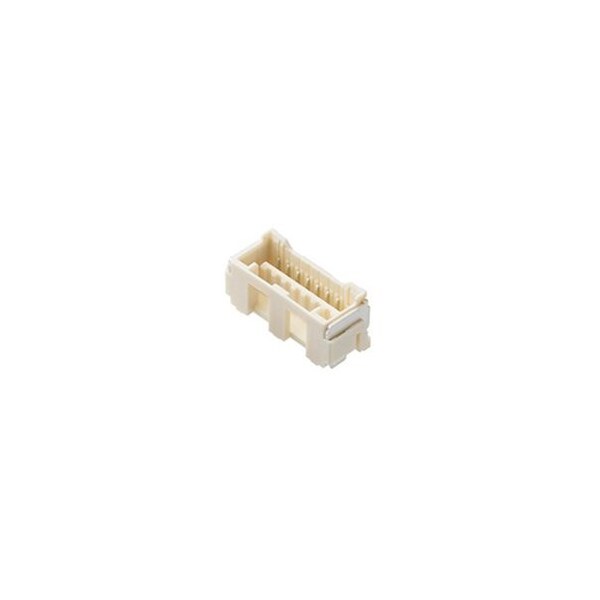

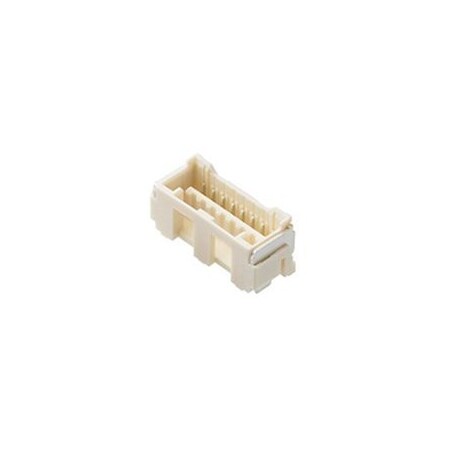

Molex 1.5W/Bsgldipstrecassy12Cktw/Oboswknkbe 5031591210

1.5W/Bsgldipstrecassy12Cktw/Oboswknkbe (Discontinued)

  • Mfr # 5031591210
  • Zoro # G005910530
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5031591210
Zoro #
G005910530
UPC #
-
Country of Origin
Japan

Dimensions

PCB Thickness - Recommended
1.50mm, 2.00mm

Details

Number of Rows
1
Color
Beige
Material
Copper Alloy
Application
Signal, Wire-to-Board
Max. Temp.
105°C
Series
503159
Contact Finish
Tin Plated
Hole Center to Center
1.5 mm
Max. Voltage
100V
Number of Contacts
12
Terminal Finish
Tin Plated
Terminal Type
Through Hole
Current Rating
2 A
Product Name
CLIK-Mate
Component Type
PCB Receptacle
Current - Maximum per Contact
2.0A
Temperature Range - Operating
-40° to +105°C
Orientation
Vertical
Glow-Wire Capable
No
PCB Retention
Yes
Material - Plating Mating
Tin
Polarized to PCB
Yes
Guide to Mating Part
Yes
Lock to Mating Part
Yes
PCB Locator
No
Pitch - Mating Interface
1.50mm
Keying to Mating Part
None
Polarized to Mating Part
Yes
Durability (mating cycles max)
30
Circuits (Loaded)
12
Stackable
No
Material - Plating Termination
Tin
