  11. 16CKT R/A MINI FIT HEADER 556916A1

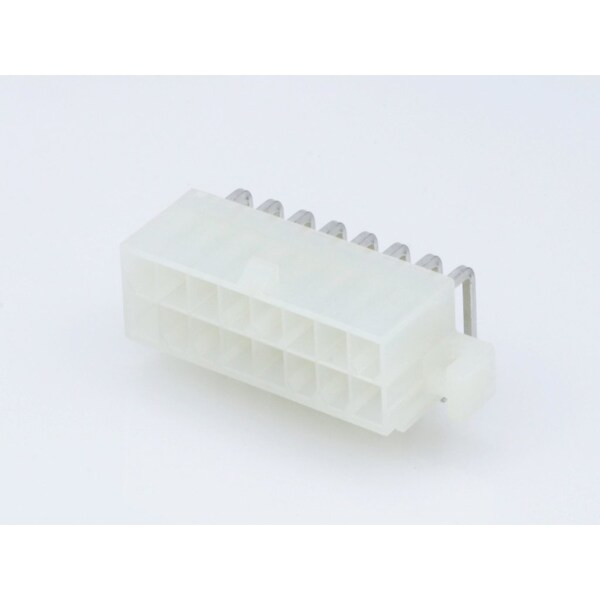

Molex 16CKT R/A MINI FIT HEADER 556916A1 39-29-1168 - main

16CKT R/A MINI FIT HEADER 556916A1

  • Mfr # 39-29-1168

  • Zoro # G800415698

original price: $3.19
6% off
new price: $2.99
/ea
Sold in multiples of 35 for $104.65

Key Features

Material - Metal
Brass
Material - Plating Mating
Matte Tin
Plating min - Termination
2.540µm
Circuits (maximum)
16
Flammability
94V-2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
39-29-1168
Zoro #
G800415698
UPC #
-
Country of Origin
Mexico

Dimensions

PCB Thickness - Recommended
1.78mm

Details

Material - Metal
Brass
Material - Plating Mating
Matte Tin
Plating min - Termination
2.540µm
Circuits (maximum)
16
Flammability
94V-2
Circuits (Loaded)
16
CSA
LR19980
Shrouded
Fully
Pitch - Mating Interface
4.20mm
Number of Rows
2
Duration at Max. Process Temperature (seconds)
5
Material - Plating Termination
Matte Tin
Durability (mating cycles max)
30
Orientation
Right Angle
Lock to Mating Part
Yes
Process Temperature max. C
260
Voltage - Maximum
600V
Color - Resin
Natural
Current - Maximum per Contact
13.0A
Termination Interface: Style
Through Hole
Pitch - Termination Interface
4.20mm
UL
E29179
Material - Resin
Nylon
Polarized to Mating Part
Yes
Max. Cycles at Max. Process Temperature
1
PCB Locator
Yes
Polarized to PCB
Yes
Temperature Range - Operating
-40° to +105°C
Plating min - Mating
2.540µm
PCB Retention
Yes
