  11. .187X.020 Fem Fiqd V-O Loose(Aa-2202V)

This item is Discontinued.

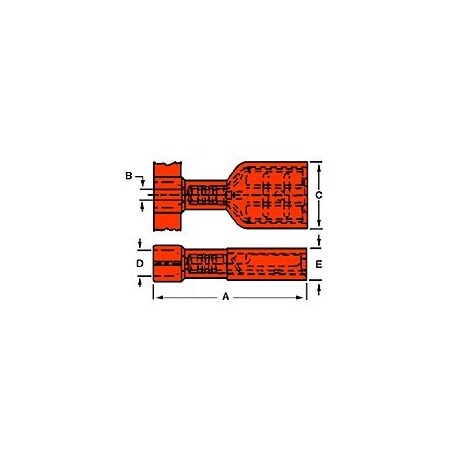

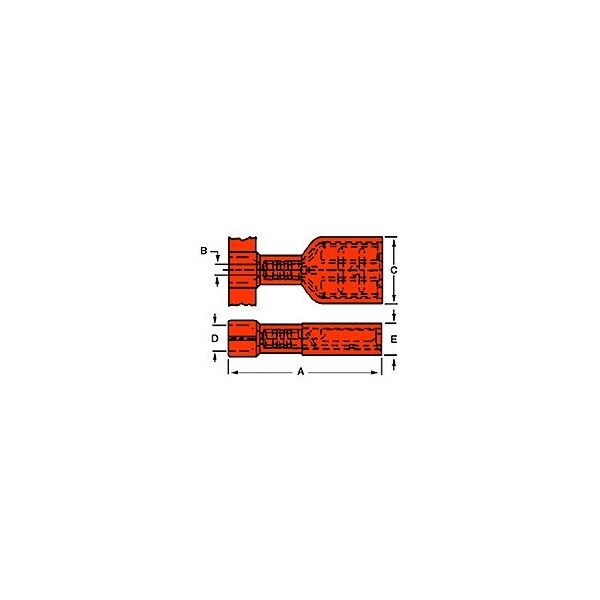

Molex .187X.020 Fem Fiqd V-O Loose(Aa-2202V) 190030126

.187X.020 Fem Fiqd V-O Loose(Aa-2202V) (Discontinued)

  • Mfr # 190030126
  • Zoro # G605900276
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
190030126
Zoro #
G605900276
UPC #
-
Country of Origin
United States

Dimensions

Wire Size (AWG)
18, 20, 22
Tab Thickness
0.51mm
Tab Width
4.75mm

Details

Insulation Color
Red
Insulation Type
Nylon (PA)
Connection Type
Female, Crimp or Compression
Wire Range
22 to 18 AWG
Seam
Closed
Max. Temp.
105 Degrees C
Max. Voltage
600V
Connection Material
Brass
Standards
UL E79133
Flammability
94V-0
Orientation
Straight
Temperature Range - Operating
-65° to +105°C
Series
19003
UL
E79133
Type
Quick Disconnect
Polarized to Mating Part
No
Material - Plating Termination
Tin
Lock to Mating Part
None
Product Name
InsulKrimp
Material - Plating Mating
Tin
Plating min - Mating
4.064µm
Termination Interface Style
Crimp or Compression
Material - Resin
Nylon
Gender
Female
Insulated
Fully
Glow-Wire Capable
No
