  11. .187X.020 Female Fiqd Expanded (Bb-2207X
This item is Discontinued.

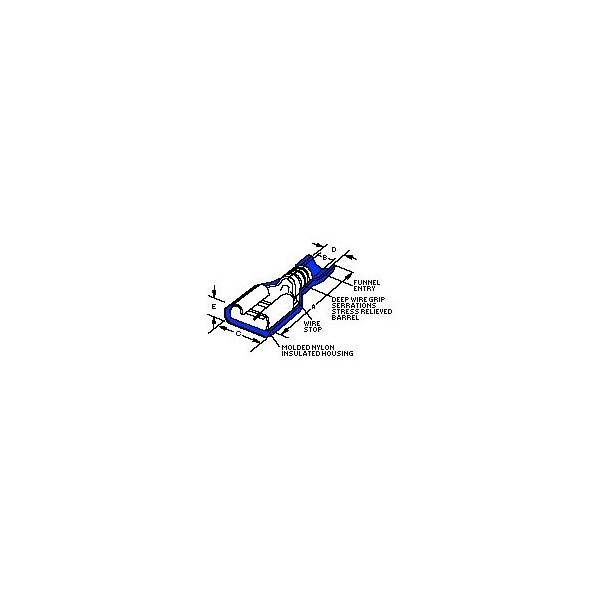

Molex .187X.020 Female Fiqd Expanded (Bb-2207X 190030053

.187X.020 Female Fiqd Expanded (Bb-2207X (Discontinued)

  • Mfr # 190030053
  • Zoro # G905900365
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
190030053
Zoro #
G905900365
UPC #
-
Country of Origin
United States

Dimensions

Tab Width
4.75mm
Wire Size (AWG)
14, 16
Tab Thickness
0.51mm

Details

Insulation Color
Blue
Connection Type
Female, Crimp or Compression
Wire Range
16 to 14 AWG
Insulation Type
Nylon (PA)
Seam
Closed
Max. Temp.
105 Degrees C
Max. Voltage
600V
Connection Material
Brass
Standards
CSA Listed; UL E79133
Insulation Dia
6.60mm max.
Material - Plating Termination
Tin
Orientation
Straight
Temperature Range - Operating
-65° to +105°C
CSA
LR18689
Flammability
94V-0
Product Name
InsulKrimp
Series
19003
Lock to Mating Part
None
UL
E79133
Type
Quick Disconnect
Gender
Female
Material - Resin
Nylon
Termination Interface Style
Crimp or Compression
Polarized to Mating Part
No
Plating min - Mating
4.064µm
Insulated
Fully
Material - Plating Mating
Tin
Glow-Wire Capable
No
