  11. .187X.032 Fem Fiqd V-O Loose(Bb-2208V)

This item is Discontinued.

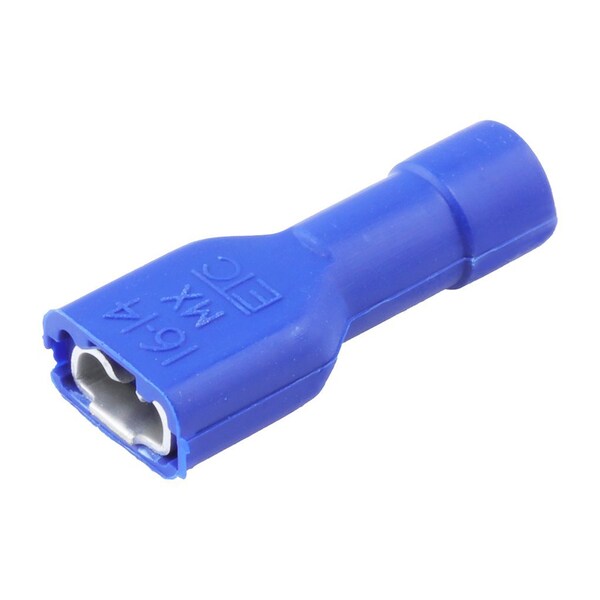

Molex .187X.032 Fem Fiqd V-O Loose(Bb-2208V) 190030135

.187X.032 Fem Fiqd V-O Loose(Bb-2208V) (Discontinued)

  • Mfr # 190030135
  • Zoro # G205900065
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
190030135
Zoro #
G205900065
UPC #
-
Country of Origin
United States

Dimensions

Wire Size (AWG)
14, 16
Tab Thickness
0.81mm
Tab Width
4.75mm

Details

Insulation Color
Blue
Insulation Type
Nylon (PA)
Wire Range
16 to 14 AWG
Connection Type
Female, Crimp or Compression
Seam
Closed
Max. Voltage
600V
Max. Temp.
105 Degrees C
Connection Material
Brass
Standards
UL E79133
Polarized to Mating Part
No
Plating min - Mating
4.064µm
Material - Plating Termination
Tin
Type
Quick Disconnect
Lock to Mating Part
None
Termination Interface Style
Crimp or Compression
Series
19003
Gender
Female
Insulated
Fully
UL
E79133
Temperature Range - Operating
-65° to +105°C
Product Name
InsulKrimp
Material - Resin
Nylon
Material - Plating Mating
Tin
Orientation
Straight
Flammability
94V-0
Glow-Wire Capable
No
