This item is Discontinued.

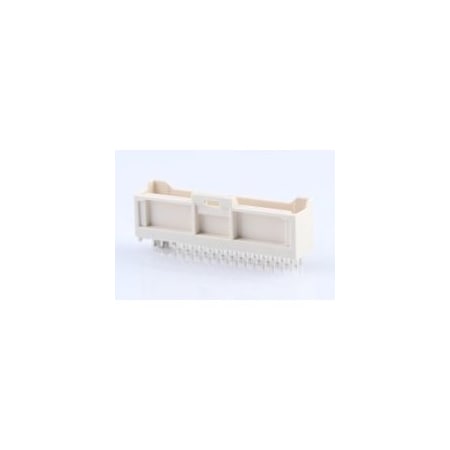

Molex 2.0 W/B Dual Grid Plug HsgAssy34Ckt 501645-3420

2.0 W/B Dual Grid Plug HsgAssy34Ckt (Discontinued)

  • Mfr # 501645-3420
  • Zoro # G4047623
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
501645-3420
Zoro #
G4047623
UPC #
-
Country of Origin
Hong Kong

Dimensions

PCB Thickness - Recommended
1.20mm, 1.60mm
PC Tail Length
3.20mm

Details

Pitch - Mating Interface
2.00mm
Polarized to PCB
Yes
Material - Plating Termination
Tin
Flammability
94V-0
PCB Locator
Yes
Number of Rows
2
Current - Maximum per Contact
2.0A
Voltage - Maximum
250V AC (RMS)/DC
Termination Interface: Style
Through Hole
Polarized to Mating Part
Yes
Circuits (maximum)
34
Lock to Mating Part
Yes
Orientation
Vertical
UL
E29179
Circuits (Loaded)
34
Temperature Range - Operating
-40° to +105°C
Material - Plating Mating
Tin
CSA
LR19980
Durability (mating cycles max)
30
Keying to Mating Part
Yes
Color - Resin
Natural
Material - Resin
Nylon
Material - Metal
Brass
