This item is Discontinued.

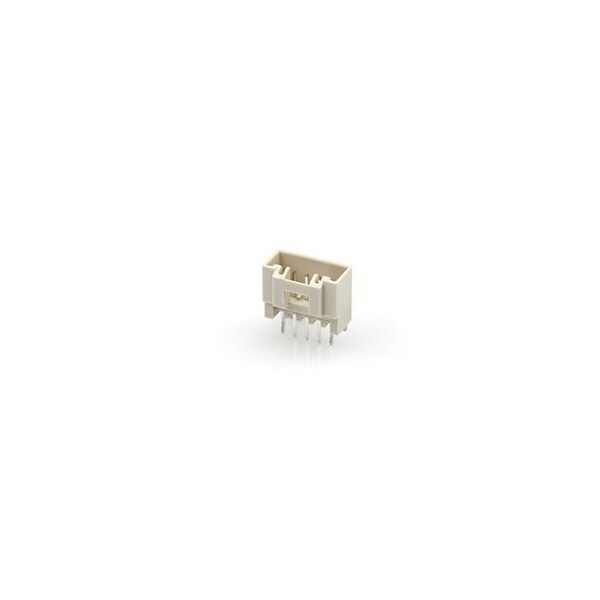

Molex 2.0 WtB Hdr Assy ST 5Ckt 55755-0519

2.0 WtB Hdr Assy ST 5Ckt (Discontinued)

  • Mfr # 55755-0519
  • Zoro # G2749029
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
55755-0519
Zoro #
G2749029
UPC #
-
Country of Origin
Japan

Dimensions

PCB Thickness - Recommended
1.60mm
PC Tail Length
3.30mm
Mated Height
13.45mm

Details

Flammability
94V-0
Material - Plating Termination
Tin
Temperature Range - Operating
-40° to +105°C
Polarized to Mating Part
Yes
Plating min - Termination
1.016µm
Termination Interface: Style
Through Hole
Circuits (Loaded)
5
Material - Metal
Brass
UL
E29179
Circuits (maximum)
5
Current - Maximum per Contact
2.5A
Material - Plating Mating
Tin
Voltage - Maximum
250V
PCB Retention
Yes
Pitch - Mating Interface
2.00mm
Shrouded
Fully
Material - Resin
Nylon
Color - Resin
Natural
Lock to Mating Part
Yes
Number of Rows
1
PCB Locator
Yes
Plating min - Mating
1.016µm
Orientation
Vertical
Durability (mating cycles max)
30
