  11. 22CKT R/A MINI FIT HEADER 556922A1

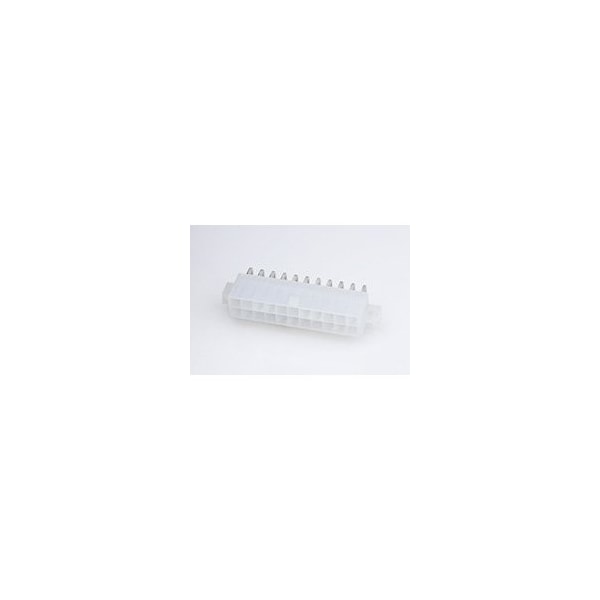

Molex 22CKT R/A MINI FIT HEADER 556922A1 39-29-1228 - main

22CKT R/A MINI FIT HEADER 556922A1

  • Mfr # 39-29-1228

  • Zoro # G200415670

product price: $3.65
/ea
Sold in multiples of 30 for $109.50

Key Features

Material - Plating Termination
Matte Tin
Polarized to PCB
Yes
Orientation
Right Angle
Polarized to Mating Part
Yes
CSA
LR19980
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
39-29-1228
Zoro #
G200415670
UPC #
-
Country of Origin
Mexico

Dimensions

PCB Thickness - Recommended
1.78mm

Details

Material - Plating Termination
Matte Tin
Polarized to PCB
Yes
Orientation
Right Angle
Polarized to Mating Part
Yes
CSA
LR19980
Current - Maximum per Contact
13.0A
Voltage - Maximum
600V
Material - Plating Mating
Matte Tin
PCB Retention
Yes
Temperature Range - Operating
-40° to +105°C
Circuits (maximum)
22
Flammability
94V-2
Plating min - Termination
2.540µm
Material - Metal
Brass
Shrouded
Fully
UL
E29179
Pitch - Mating Interface
4.20mm
Color - Resin
Natural
Number of Rows
2
Process Temperature max. C
260
PCB Locator
Yes
Duration at Max. Process Temperature (seconds)
5
Durability (mating cycles max)
30
Pitch - Termination Interface
4.20mm
Termination Interface: Style
Through Hole
Max. Cycles at Max. Process Temperature
1
Circuits (Loaded)
22
Material - Resin
Nylon
Lock to Mating Part
Yes
Plating min - Mating
2.540µm
