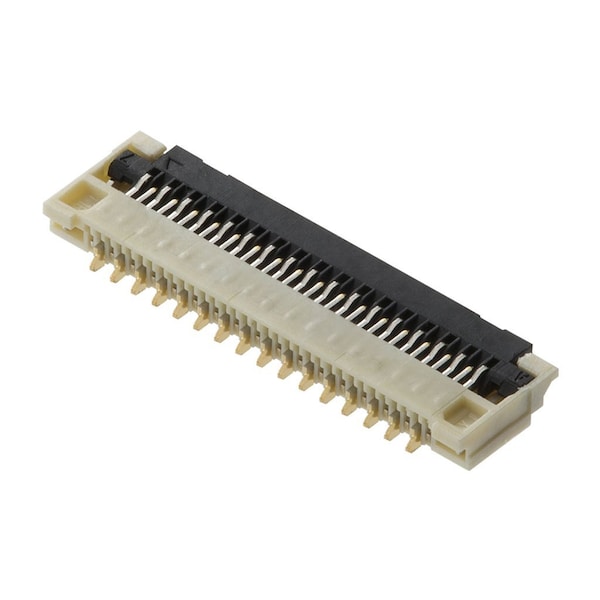

250Um Fpc E/O Hsg Assy 53Ckt Embstppkg
Mfr # 5020785362
Zoro # G005914026
product price: $3.15
/eaSold in multiples of 6000 for $18,900.00
Key Features
Series
502078
Color - Resin
Beige
Voltage - Maximum
50V
Temperature Range - Operating
-40° to +85°C
Material - Metal
Phosphor Bronze
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
5020785362
Zoro #
G005914026
UPC #
-
Country of Origin
Japan
Dimensions
Mated Height
1.00mm
Details
Series
502078
Color - Resin
Beige
Voltage - Maximum
50V
Temperature Range - Operating
-40° to +85°C
Material - Metal
Phosphor Bronze
Material - Resin
Liquid Crystal Polymer
Pitch - Mating Interface
0.25mm
Material - Plating Termination
Gold
PCB Mounting
Surface Mount
Product Name
Easy-On
Polarized to PCB
Yes
Wire/Cable Type
FPC only
Orientation
Right Angle
Stackable
No
Circuits (Loaded)
53
PCB Retention
Yes
Material - Plating Mating
Gold
Current - Maximum per Contact
0.3A
PCB Locator
No
Actuator Type
Front Flip
Durability (mating cycles max)
10
Contact Position
Bottom
