  11. .250X.032 Fem.Qd Vibrakrimp P-4178 Spm
This item is Discontinued.

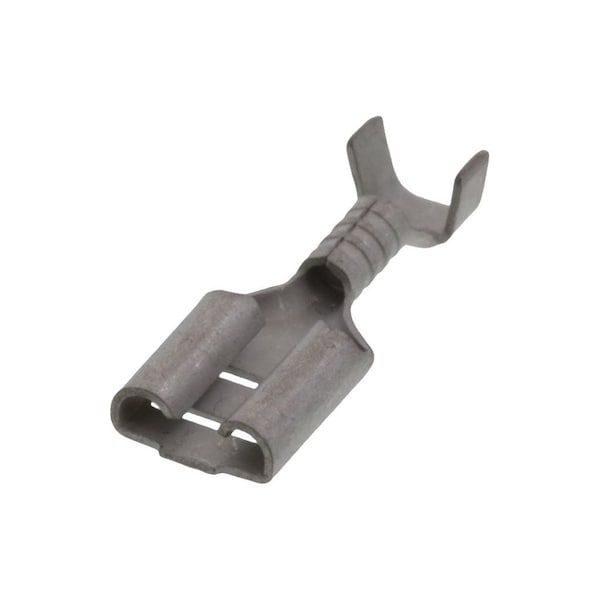

Molex .250X.032 Fem.Qd Vibrakrimp P-4178 Spm 190180024

.250X.032 Fem.Qd Vibrakrimp P-4178 Spm (Discontinued)

  • Mfr # 190180024
  • Zoro # G405899688
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
190180024
Zoro #
G405899688
UPC #
-
Country of Origin
United States

Dimensions

Tab Width
6.35mm
Tab Thickness
0.81mm
Wire Size (AWG)
12, 14

Details

Insulation
None
Wire Range
14 to 12 AWG
Insulation Type
Non-Insulated
Connection Type
Female
Seam
Closed
Connection Material
Brass
Standards
CSA Listed; UL E79133
Insulation Dia
2.50-4.40mm
Type
Quick Disconnect
CSA
LR18689
UL
E79133
Material - Plating Termination
Tin
Voltage - Maximum
Per Wire Specification
Insulated
No
Temperature Range - Operating
Per Wire Specification
Polarized to Mating Part
No
Orientation
Straight
Lock to Mating Part
None
Product Name
VibraKrimp
Material - Plating Mating
Tin
Glow-Wire Capable
No
Series
19018
