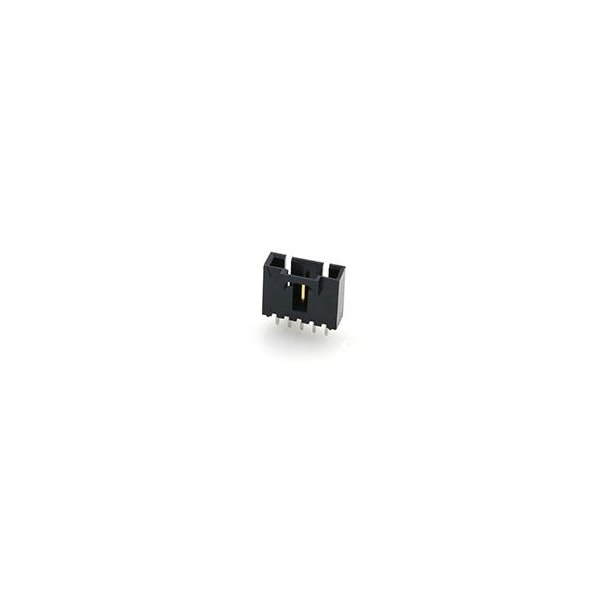

Molex 2.54CGridSL SrdVHdrAssySR 15 SAu 5Ckt 70543-0004 - main

2.54CGridSL SrdVHdrAssySR 15 SAu 5Ckt

  • Mfr # 70543-0004

  • Zoro # G7770908

product price: $1.15
/ea
Sold in multiples of 150 for $172.50

Key Features

PC Tail Length
3.30mm
Material - Resin
High Temperature Thermoplastic
Plating min - Termination
1.905µm
Durability (mating cycles max)
50
Lock to Mating Part
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
70543-0004
Zoro #
G7770908
UPC #
-
Country of Origin
Unknown

Dimensions

PC Tail Length
3.30mm
PCB Thickness - Recommended
1.60mm

Details

Material - Resin
High Temperature Thermoplastic
Plating min - Termination
1.905µm
Durability (mating cycles max)
50
Lock to Mating Part
Yes
Pitch - Termination Interface
2.54mm
Material - Metal
Brass, Phosphor Bronze
Circuits (Loaded)
5
CSA
LR19980
Material - Plating Termination
Tin
Circuits (maximum)
5
Temperature Range - Operating
-40° to +105°C
Shrouded
Fully
Process Temperature max. C
260
Plating min - Mating
0.381µm
Max. Cycles at Max. Process Temperature
1
Voltage - Maximum
250V
Color - Resin
Black
Orientation
Vertical
Current - Maximum per Contact
3.0A
Flammability
94V-0
Pitch - Mating Interface
2.54mm
Number of Rows
1
Duration at Max. Process Temperature (seconds)
3
Material - Plating Mating
Gold
Polarized to Mating Part
Yes
UL
E29179
Termination Interface: Style
Through Hole
