  11. 2.54mm KK Hdr RA FricLK .5Au 5Ckt

This item is Discontinued.

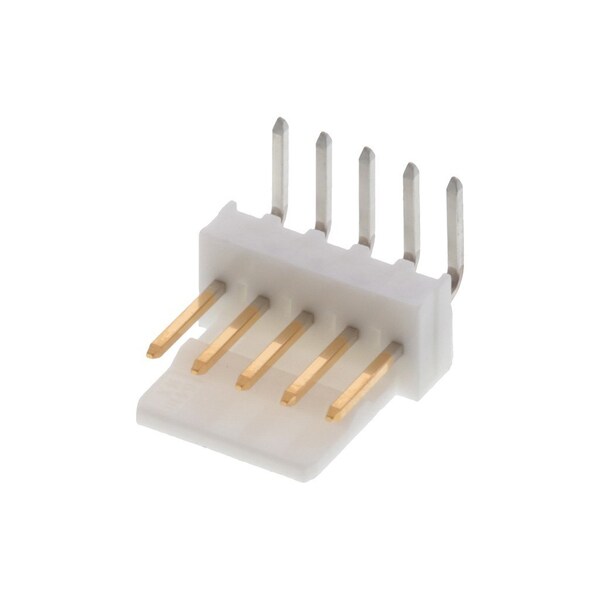

Molex 2.54mm KK Hdr RA FricLK .5Au 5Ckt 22-12-4052

2.54mm KK Hdr RA FricLK .5Au 5Ckt (Discontinued)

  • Mfr # 22-12-4052
  • Zoro # G4051044
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
22-12-4052
Zoro #
G4051044
UPC #
-
Country of Origin
India

Dimensions

PC Tail Length
3.80mm
PCB Thickness - Recommended
1.60mm

Details

Material - Plating Mating
Gold
Shrouded
Partial
Pitch - Mating Interface
2.54mm
Plating min - Termination
0.508µm
Durability (mating cycles max)
100
Flammability
94V-0
Pitch - Termination Interface
2.54mm
Polarized to PCB
Yes
UL
E29179
Orientation
Right Angle
Material - Metal
Brass
Plating min - Mating
0.508µm
Max. Cycles at Max. Process Temperature
1
Duration at Max. Process Temperature (seconds)
5
Material - Resin
Nylon
Termination Interface: Style
Through Hole
Voltage - Maximum
500V
Current - Maximum per Contact
4.0A
Material - Plating Termination
Tin
CSA
LR19980
Number of Rows
1
Circuits (Loaded)
5
Process Temperature max. C
235
Color - Resin
Natural (White)
Lock to Mating Part
Yes
Circuits (maximum)
5
