Shop MOLEX

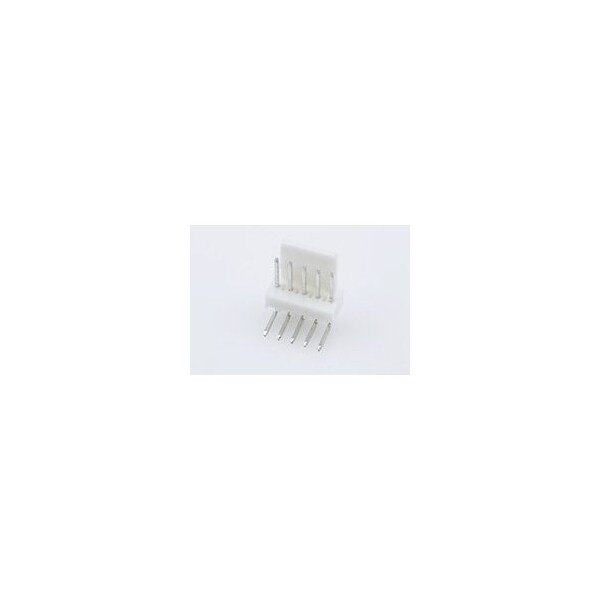

2.54mm KK Hdr RA FricLK 5Sn 5Ckt

  • Mfr # 22-05-7058
  • Zoro # G7767399
product price:
$
0.38
/ea
Sold in multiples of 77 for $29.26

Key Features

PC Tail Length
3.80mm
Voltage - Maximum
500V
Orientation
Right Angle
Flammability
94V-0
Process Temperature max. C
235
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
22-05-7058
Zoro #
G7767399
UPC #
-
Country of Origin
Mexico

Dimensions

PC Tail Length
3.80mm
PCB Thickness - Recommended
1.60mm

Details

Voltage - Maximum
500V
Orientation
Right Angle
Flammability
94V-0
Process Temperature max. C
235
Material - Metal
Brass
CSA
LR19980
Plating min - Mating
5.080µm
Material - Plating Termination
Tin
Lock to Mating Part
Yes
Circuits (maximum)
5
Max. Cycles at Max. Process Temperature
1
Color - Resin
Natural (White)
Material - Resin
Nylon
Material - Plating Mating
Tin
Termination Interface: Style
Through Hole
Pitch - Mating Interface
2.54mm
Pitch - Termination Interface
2.54mm
Durability (mating cycles max)
25
Polarized to Mating Part
Yes
Current - Maximum per Contact
4.0A
Circuits (Loaded)
5
Number of Rows
1
UL
E29179
Plating min - Termination
5.080µm
Duration at Max. Process Temperature (seconds)
5
