This item is Discontinued.

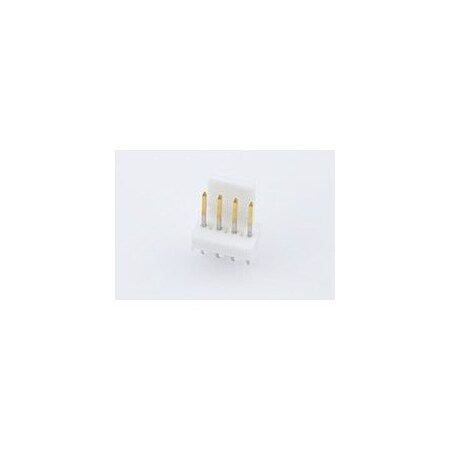

Molex 2.54mm KK Hdr Vt FricLK VrA .5Au 4Ckt 22-29-2041

2.54mm KK Hdr Vt FricLK VrA .5Au 4Ckt (Discontinued)

  • Mfr # 22-29-2041
  • Zoro # G2756412
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
22-29-2041
Zoro #
G2756412
UPC #
-
Country of Origin
India

Dimensions

PC Tail Length
3.56mm
PCB Thickness - Recommended
1.60mm

Details

Material - Plating Mating
Gold
UL
E29179
Material - Resin
Nylon
Process Temperature max. C
235
Flammability
94V-0
Termination Interface: Style
Through Hole
Duration at Max. Process Temperature (seconds)
5
Max. Cycles at Max. Process Temperature
1
Pitch - Termination Interface
2.54mm
Color - Resin
Natural (White)
Polarized to Mating Part
Yes
Plating min - Termination
0.508µm
Orientation
Vertical
Lock to Mating Part
Yes
Material - Plating Termination
Tin
Circuits (Loaded)
4
CSA
LR19980
Current - Maximum per Contact
4.0A
Number of Rows
1
Shrouded
Partial
Plating min - Mating
0.508µm
Pitch - Mating Interface
2.54mm
Voltage - Maximum
500V
Material - Metal
Brass
Circuits (maximum)
4
