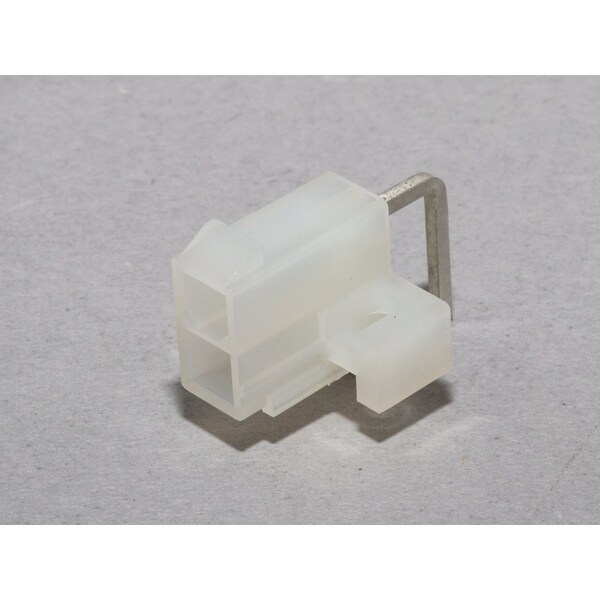

2CKT R/A MINI FIT HEADER 556902A1 (Discontinued)

Name: 2CKT R/A MINI FIT HEADER 556902A1
Brand: Molex
SKU: G800417036
Price: 140.00 USD
Availability: Discontinued

Get a 10% off coupon

Free 30-day returns

Get 30 days to pay with Net 30

Real support from real people

Product Information

PCB Thickness - Recommended

1.78mm

Polarized to PCB	Yes
Circuits (maximum)	2
Color - Resin	Natural
Lock to Mating Part	Yes
Plating min - Mating	2.540µm
Material - Plating Termination	Matte Tin
Orientation	Right Angle
PCB Retention	Yes
PCB Locator	Yes
Circuits (Loaded)	2
Voltage - Maximum	600V
CSA	LR19980
Pitch - Termination Interface	4.20mm
Pitch - Mating Interface	4.20mm
Number of Rows	2
Material - Plating Mating	Matte Tin
Temperature Range - Operating	-40° to +105°C
Termination Interface: Style	Through Hole
Process Temperature max. C	260
Durability (mating cycles max)	30
Material - Resin	Nylon
Material - Metal	Brass
Flammability	94V-2
Polarized to Mating Part	Yes
Current - Maximum per Contact	13.0A
Max. Cycles at Max. Process Temperature	1
UL	E29179
Shrouded	Fully
Duration at Max. Process Temperature (seconds)	5
Plating min - Termination	2.540µm
