  11. 2mm MGrid VHdr 76AuLF 4Ckt
This item is Discontinued.

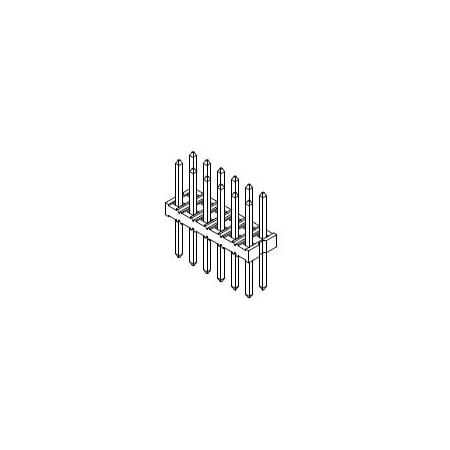

Molex 2mm MGrid VHdr 76AuLF 4Ckt 87758-0417

2mm MGrid VHdr 76AuLF 4Ckt (Discontinued)

  • Mfr # 87758-0417
  • Zoro # G2753448
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
87758-0417
Zoro #
G2753448
UPC #
-
Country of Origin
Indonesia

Dimensions

PCB Thickness - Recommended
1.60mm
PC Tail Length
2.60mm
Mated Height
4.00mm

Details

Material - Resin
Nylon
Termination Interface: Style
Through Hole
UL
E29179
Current - Maximum per Contact
2.0A
Flammability
94V-0
Number of Rows
2
Voltage - Maximum
125V
Material - Plating Mating
Gold
Circuits (maximum)
4
Material - Metal
Phosphor Bronze
Max. Cycles at Max. Process Temperature
1
Duration at Max. Process Temperature (seconds)
3
Color - Resin
Black
Durability (mating cycles max)
100
Circuits (Loaded)
4
Pitch - Termination Interface
2.00mm
Pitch - Mating Interface
2.00mm
Breakaway
Yes
Orientation
Vertical
Plating min - Mating
0.762µm
Temperature Range - Operating
-55° to +105°C
Process Temperature max. C
250
Material - Plating Termination
Tin
Surface Mount Compatible (SMC)
Yes
