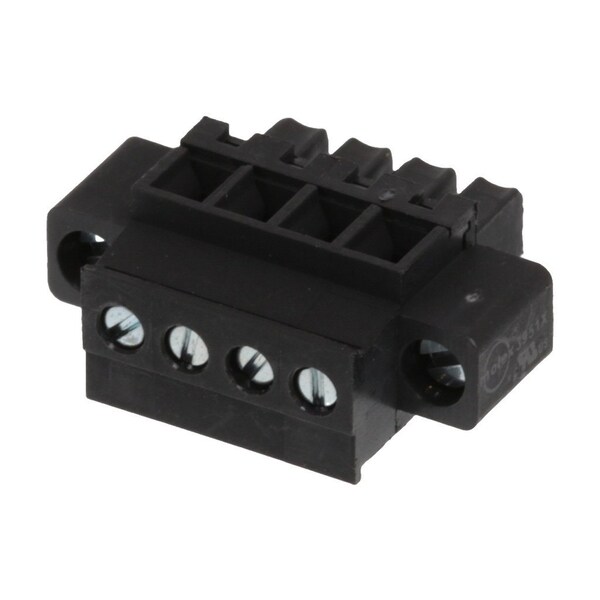

3.81Mm Euro Plug Vert Me Rwe Blk 4Ckt
Mfr # 395172004
Zoro # G305919271
product price: $1.29
/eaSold in multiples of 75 for $96.75
Key Features
Orientation
Vertical
Entry Angle
Horizontal
Circuits (Loaded)
4
Wire Size mm²
0.05-1.31
Pitch - Termination Interface
3.81mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
395172004
Zoro #
G305919271
UPC #
-
Country of Origin
China
Dimensions
Wire Size mm²
0.05-1.31
Wire Size AWG
16, 18, 20, 22, 24, 26, 28, 30
Details
Orientation
Vertical
Entry Angle
Horizontal
Circuits (Loaded)
4
Pitch - Termination Interface
3.81mm
Number of Rows
1
Current - Maximum per Contact
8.0A
Pitch - Mating Interface
3.81mm
Stackable
No
Temperature Range - Operating
-40° to +105°C
Lock to Mating Part
Yes
Panel Mount
No
UL
E48521
Voltage - Maximum
300V
Polarized to Mating Part
Yes
