This item is Discontinued.

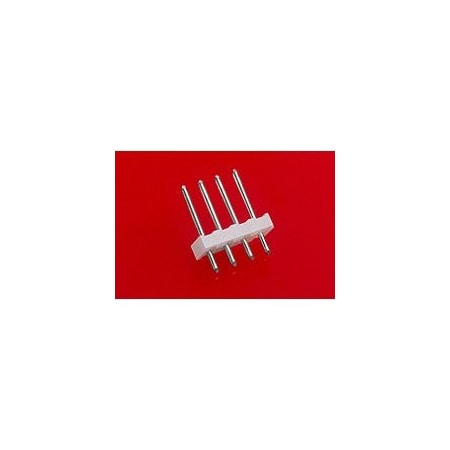

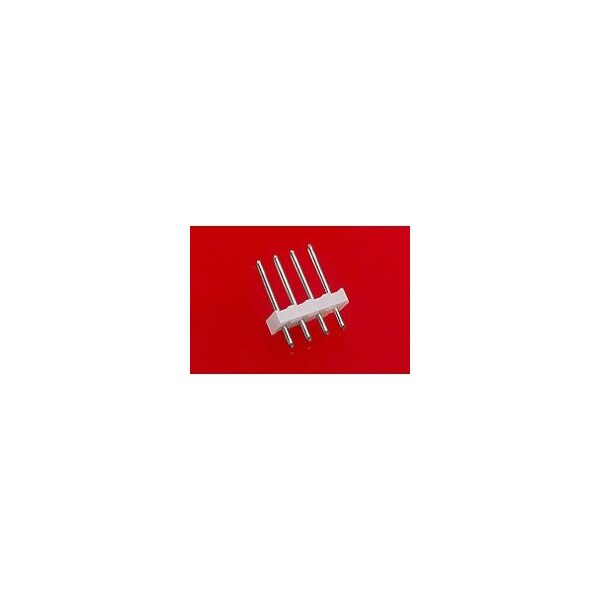

Molex 3.96mm KK Hdr Vt RPin VrA 4Ckt 26-20-2041

3.96mm KK Hdr Vt RPin VrA 4Ckt (Discontinued)

  • Mfr # 26-20-2041
  • Zoro # G4049050
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
26-20-2041
Zoro #
G4049050
UPC #
-
Country of Origin
India

Dimensions

PCB Thickness - Recommended
1.60mm
PC Tail Length
4.45mm

Details

Plating min - Mating
5.080µm
Number of Rows
1
UL
E29179
Orientation
Vertical
Termination Interface: Style
Through Hole
Voltage - Maximum
250V
Max. Cycles at Max. Process Temperature
1
Pitch - Mating Interface
3.96mm
Flammability
94V-2
Stackable
Yes
Material - Plating Mating
Tin
Duration at Max. Process Temperature (seconds)
5
Color - Resin
Natural
Durability (mating cycles max)
25
Process Temperature max. C
235
Material - Plating Termination
Tin
Material - Resin
Nylon
Current - Maximum per Contact
7.0A
Pitch - Termination Interface
3.96mm
Circuits (Loaded)
4
Plating min - Termination
5.080µm
Circuits (maximum)
4
Material - Metal
Brass
