  11. 4.20mm WtB RAHdr W/O MntFlg 2.54Sn 8Ckt
This item is Discontinued.

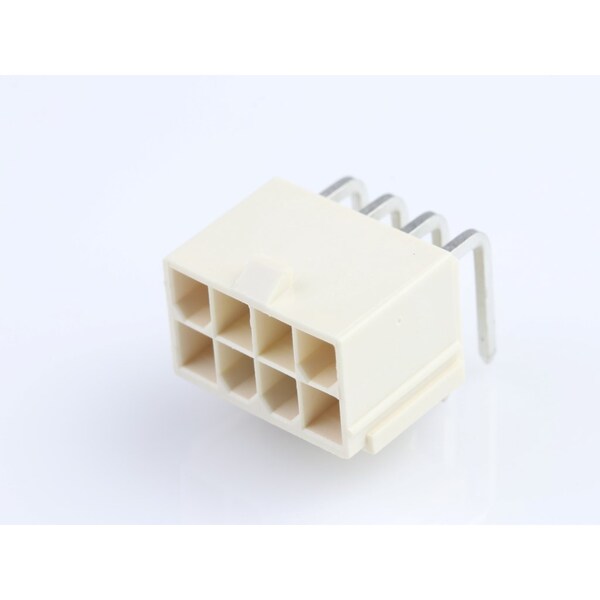

Molex 4.20mm WtB RAHdr W/O MntFlg 2.54Sn 8Ckt 87427-0802

4.20mm WtB RAHdr W/O MntFlg 2.54Sn 8Ckt (Discontinued)

  • Mfr # 87427-0802
  • Zoro # G2749010
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
87427-0802
Zoro #
G2749010
UPC #
-
Country of Origin
India

Dimensions

PCB Thickness - Recommended
1.60mm
PC Tail Length
3.30mm

Details

Duration at Max. Process Temperature (seconds)
5
Lock to Mating Part
Yes
Plating min - Mating
2.540µm
Material - Plating Termination
Tin
Shrouded
Fully
Temperature Range - Operating
-40° to +105°C
Plating min - Termination
2.540µm
Circuits (Loaded)
8
CSA
LR19980
Max. Cycles at Max. Process Temperature
1
Pitch - Mating Interface
4.20mm
Material - Plating Mating
Tin
Circuits (maximum)
8
Pitch - Termination Interface
4.20mm
Number of Rows
2
Material - Resin
Nylon
Polarized to Mating Part
Yes
Color - Resin
Beige
Process Temperature max. C
260
Voltage - Maximum
600V
Termination Interface: Style
Through Hole
Current - Maximum per Contact
13.0A
Durability (mating cycles max)
30
UL
E29179
Material - Metal
Brass
Flammability
94V-0
Orientation
Right Angle
