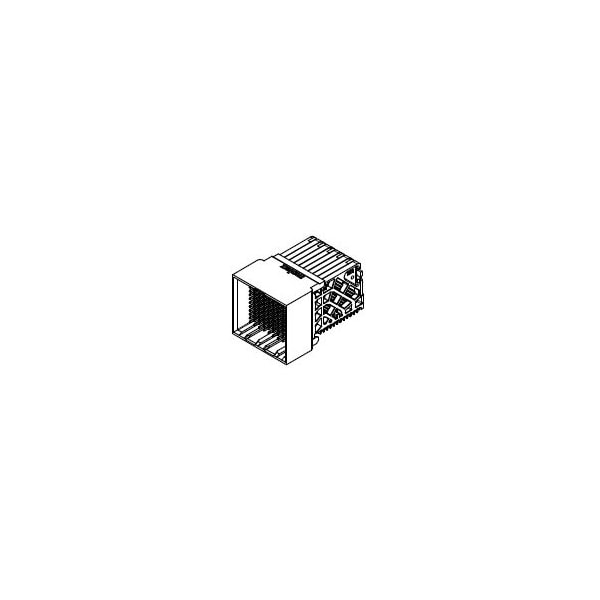

Molex 4P Impact Ram 8Col Dual Wall Sn 4.9Mm 765001827 - main

4P Impact Ram 8Col Dual Wall Sn 4.9Mm

  • Mfr # 765001827

  • Zoro # G805995423

product price:  $18.15
/ea
Sold in multiples of 4 for $72.60

Key Features

Impedance
100Ω
Color - Resin
Black
Durability (mating cycles max)
200
Circuits (maximum)
96
UL
E29179
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
765001827
Zoro #
G805995423
UPC #
-
Country of Origin
Singapore

Dimensions

PC Tail Length
1.20mm
PCB Thickness - Recommended
1.00mm

Details

Impedance
100Ω
Color - Resin
Black
Durability (mating cycles max)
200
Circuits (maximum)
96
UL
E29179
Flammability
94V-0
Material - Resin
High Temperature Thermoplastic
Number of Rows
12
Material - Plating Mating
Gold
PCB Retention
Yes
Termination Interface: Style
Through Hole - Compliant Pin
Temperature Range - Operating
-55° to +85°C
S-Parameter Model
SP-76500-002
Material - Plating Termination
Tin
Number of Columns
8
Pitch - Termination Interface
1.90mm
Number of Pairs
4
Pitch - Mating Interface
1.90mm
Current - Maximum per Contact
0.75A
Voltage - Maximum
30V AC (RMS)/DC
Orientation
Right Angle
Circuits (Loaded)
96
Material - Metal
High Performance Alloy (HPA)
Data Rate
25.0 Gbps
Plating min - Mating
0.762µm
