Shop MOLEX

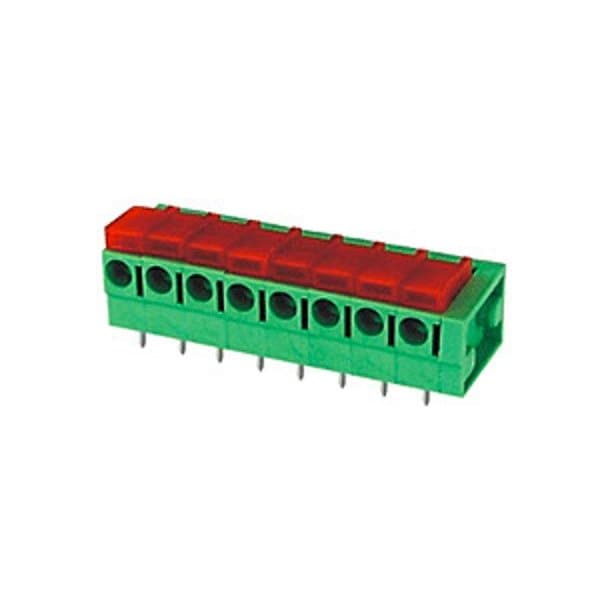

5.00Mm Pitch, Eurostyle Fixed-Mount Push-Button Terminal Block, Horizontal, 10A

  • Mfr # 397000802

  • Zoro # G305798692

product price:  $0.88
/ea
Sold in multiples of 109 for $95.92

Key Features

Number of Rows
1
Application
Wire-to-Board
Series
39700
Type
Euro Block
Current - Maximum per Contact
10.0A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
397000802
Zoro #
G305798692
UPC #
-
Country of Origin
China

Dimensions

Wire Size (AWG)
14, 16, 18, 20, 22

Details

Number of Rows
1
Application
Wire-to-Board
Series
39700
Type
Euro Block
Current - Maximum per Contact
10.0A
Product Name
ESE,Eurostyle Fixed Mount
Circuits (Loaded)
2
Material - Resin
Nylon
Material - Plating Termination
Tin
Component Type
Push-Button
Entry Angle
Horizontal
Polarized to Mating Part
No
Color - Resin
Green
Panel Mount
Yes
Lock to Mating Part
No
Voltage - Maximum
300V
Stackable
No
Orientation
Horizontal
Temperature Range - Operating
-40° to +105°C
Pitch - Mating Interface
5.00mm
