Contact our U.S. based teamSpecifications
Product Information
MFR #
395320003
Zoro #
G205919272
UPC #
-
Country of Origin
China
Dimensions
PCB Thickness - Recommended
3.18mm
PC Tail Length
5.08mm
Details
Series
39532
Type
Euro Block
Shrouded
Open Ends
Pitch - Termination Interface
5.08mm
Pitch - Mating Interface
5.08mm
UL
E48521
Lock to Mating Part
Yes
Temperature Range - Operating
-40° to +105°C
Circuits (Loaded)
3
Polarized to Mating Part
Yes
Panel Mount
No
Current - Maximum per Contact
15.0A
Voltage - Maximum
300V
Number of Rows
1
Stackable
No
Orientation
Horizontal

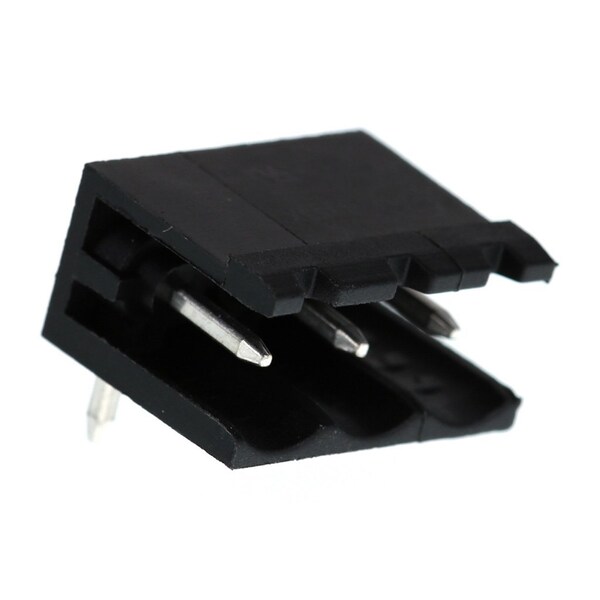

Product Name
ESE,Eurostyle Pluggable
Component Type
PCB Header
