Contact our U.S. based teamSpecifications
Product Information
MFR #
395332006
Zoro #
G905919183
UPC #
-
Country of Origin
China
Dimensions
Wire Size AWG
12, 14, 16, 18, 20, 22, 24, 26
Wire Size mm²
0.13-3.31
Details
Type
Euro Block
Pitch - Termination Interface
5.08mm
Entry Angle
Horizontal
Current - Maximum per Contact
18.0A
UL
E48521
Panel Mount
No
Voltage - Maximum
300V
Number of Rows
1
Lock to Mating Part
Yes
Polarized to Mating Part
Yes
Circuits (Loaded)
6
Stackable
No
Orientation
Vertical
Pitch - Mating Interface
5.08mm
Temperature Range - Operating
-40° to +105°C
Component Type
Plug

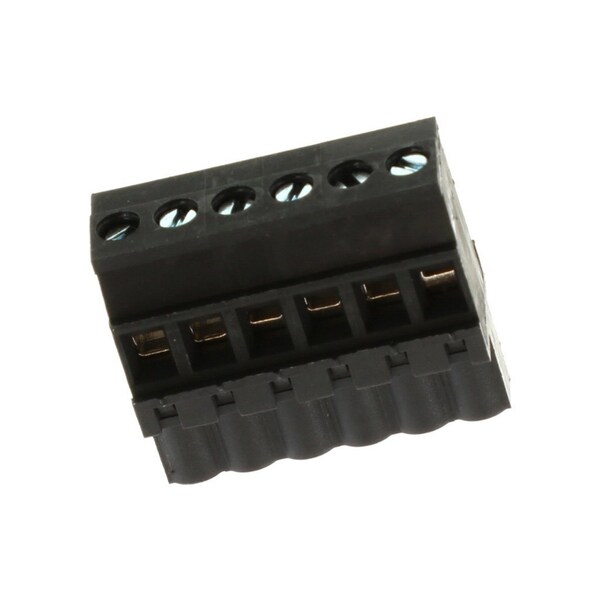

Product Name
ESE,Eurostyle Pluggable
Series
39533
