This item is Discontinued.

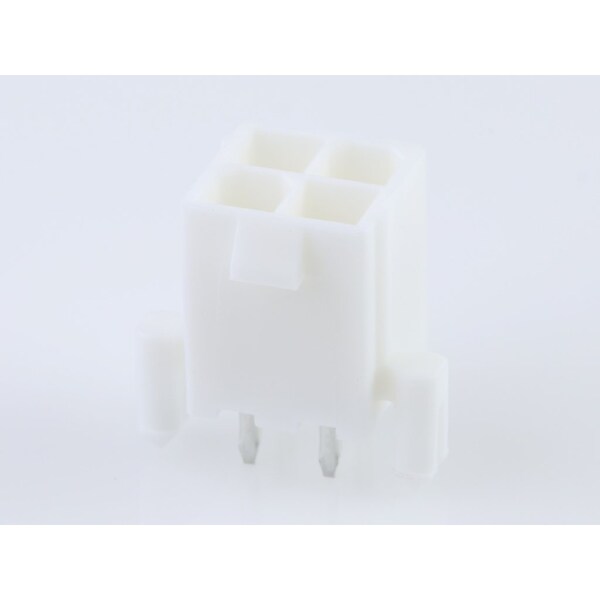

Molex A-5566-04B2GS-210 4Ckt 39-28-9048

A-5566-04B2GS-210 4Ckt (Discontinued)

  • Mfr # 39-28-9048
  • Zoro # G4036913
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
39-28-9048
Zoro #
G4036913
UPC #
-
Country of Origin
Mexico

Dimensions

PC Tail Length
3.50mm
PCB Thickness - Recommended
1.60mm

Details

Duration at Max. Process Temperature (seconds)
5
Process Temperature max. C
240
Color - Resin
Natural
UL
E29179
Shrouded
Fully
Material - Plating Termination
Matte Tin
Durability (mating cycles max)
30
Voltage - Maximum
600V
Temperature Range - Operating
-40° to +105°C
Lock to Mating Part
Yes
Circuits (maximum)
4
Polarized to PCB
Yes
Termination Interface: Style
Through Hole
Orientation
Vertical
Plating min - Termination
2.540µm
Material - Resin
Nylon
Max. Cycles at Max. Process Temperature
1
Flammability
94V-0
Material - Plating Mating
Gold
Polarized to Mating Part
Yes
Pitch - Termination Interface
4.20mm
PCB Locator
Yes
CSA
LR19980
Circuits (Loaded)
4
Material - Metal
Brass
PCB Retention
Yes
Current - Maximum per Contact
9.0A
Pitch - Mating Interface
4.20mm
Plating min - Mating
0.762µm
Number of Rows
2
