  9. Assy Z-Power 6 Circuit

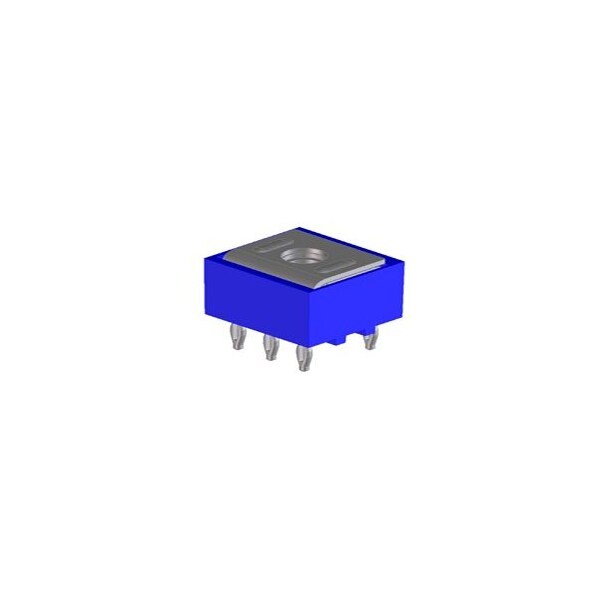

Molex Assy Z-Power 6 Circuit 760010006 - main

Assy Z-Power 6 Circuit

  • Mfr # 760010006

  • Zoro # G605947783

product price: $3.89
/ea
Sold in multiples of 30 for $116.70

Key Features

Number of Rows
2
Application
Board-to-Board, Power, Wire-to-Board
Series
76001
Shrouded
No
First Mate / Last Break
No
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
760010006
Zoro #
G605947783
UPC #
-
Country of Origin
Mexico

Dimensions

PC Tail Length
3.90mm
PCB Thickness - Recommended
2.36mm

Details

Number of Rows
2
Application
Board-to-Board, Power, Wire-to-Board
Series
76001
Shrouded
No
First Mate / Last Break
No
Glow-Wire Capable
No
Component Type
PCB Header
(p)ower-(s)ignal Configuration
1p - 0s
PCB Locator
No
Durability (mating cycles max)
5
Orientation
Vertical
UL
E29179
Guide to Mating Part
No
Flammability
94V-0
Pitch - Mating Interface
6.00mm
Polarized to PCB
No
Circuits (Loaded)
1
PCB Retention
Yes
Termination Interface Style
Through Hole - Compliant Pin
Temperature Range - Operating
-40° to +105°C
Current - Maximum per Contact
30.0A
Material - Plating Termination
Tin
Breakaway
No
CSA
LR19980
Polarized to Mating Part
Yes
Lock to Mating Part
Yes
Material - Plating Mating
Gold
Product Name
EXTreme ZPower
Voltage - Maximum
250V
Stackable
No
Material - Metal
Copper-Nickel-Silicon, Stainless Steel
Plating min - Mating
0.762µm
