  11. Board Connector, 10 Contact(S), 1 Row(S), Female, Right Angle, 0.1 Inch Pitch, Solder Terminal,

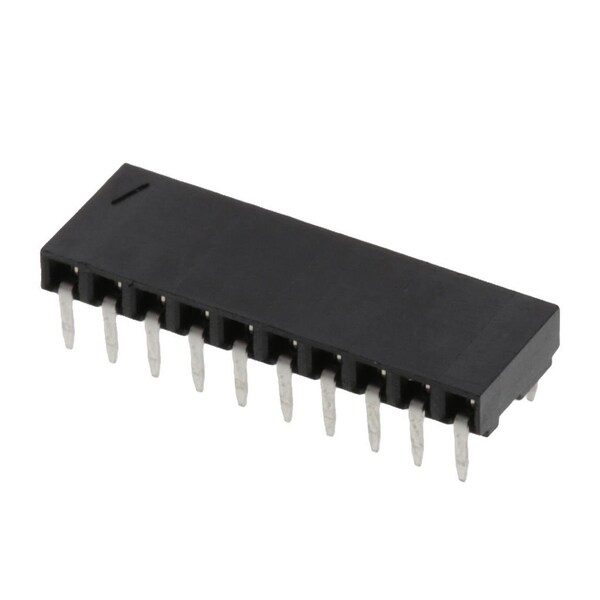

Molex Board Connector, 10 Contact(S), 1 Row(S), Female, Right Angle, 0.1 Inch Pitch, Solder Terminal, 901481210 - main

Board Connector, 10 Contact(S), 1 Row(S), Female, Right Angle, 0.1 Inch Pitch, Solder Terminal,

  • Mfr # 901481210

  • Zoro # G005890979

product price: $2.99
/ea
Sold in multiples of 44 for $131.56

Key Features

Application
Board-to-Board, Signal
Series
90148
Glow-Wire Capable
No
Polarized to Mating Part
Yes
Lock to Mating Part
No
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
901481210
Zoro #
G005890979
UPC #
-
Country of Origin
Indonesia

Dimensions

PCB Thickness - Recommended
1.60mm
PC Tail Length
2.90mm

Details

Application
Board-to-Board, Signal
Series
90148
Glow-Wire Capable
No
Polarized to Mating Part
Yes
Lock to Mating Part
No
Product Name
C-Grid III
Material - Plating Termination
Tin
Stackable
No
Pitch - Mating Interface
2.54mm
UL
E29179
Voltage - Maximum
350V AC/DC
Current - Maximum per Contact
3.0A
Guide to Mating Part
No
Grounding to PCB
No
Orientation
Right Angle
Keying to Mating Part
None
PCB Retention
None
Polarized to PCB
No
PCB Locator
No
Number of Rows
1
Material - Resin
Polyester
Plating min - Mating
0.381µm
Material - Metal
Phosphor Bronze
Termination Interface Style
Through Hole
Component Type
PCB Receptacle
Circuits (Loaded)
10
Material - Plating Mating
Gold
CSA
LR19980
Flammability
94V-0
Color - Resin
Black
Durability (mating cycles max)
100
Temperature Range - Operating
-55° to +125°C

Description

Board Connector, 10 Contact(S), 1 Row(S), Female, Right Angle, 0.1 Inch Pitch, Solder Terminal, Black Insulator, Receptacle
